Specifications:

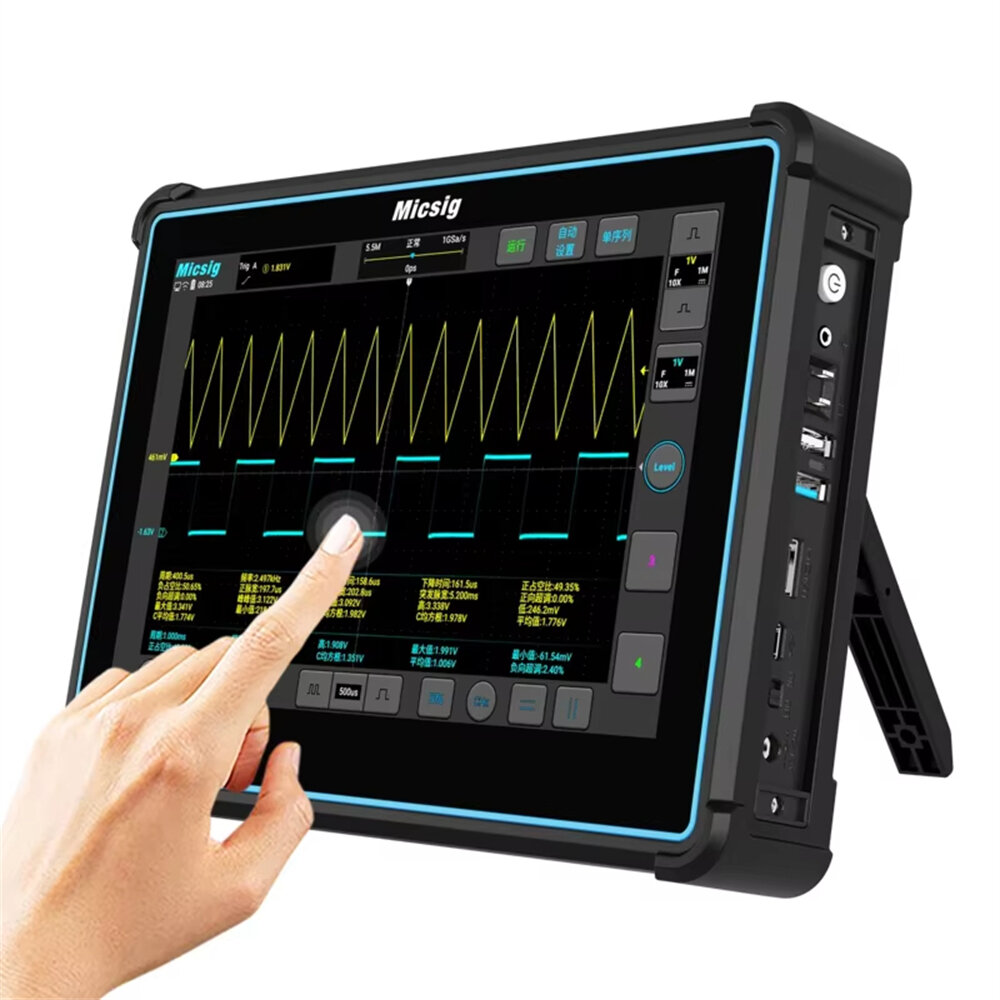

TO2004 Tablet Oscilloscope:

Analog Channels: 4

Bandwidth:
200 MHz

Rise Time: u22641.75ns

Sampling Rate (Max.):
2 GS/s

Memory Depth (Max.):
220 Mpts

Waveform Collection Rate (Max.):
300,000 wfms/s

Input Sensitivity Range: 1mV/div ~ 10V/div (1Mu03a9); 1mV/div ~ 1V/div (50u03a9)

Bandwidth Limit: 20 MHz, High & Low Pass (30 Hz ~ Full)

Segmented Storage: Support (up to 10,000 events)

Internal Storage: 32 GB

I/O Ports: Wi-Fi, USB 3.0/2.0 Host, USB Type-C, Grounding, HDMI, Trigger Out

Vertical Resolution: 8-bit

Display: 10.1" TFT-LCD capacitive touchscreen (1280u00d7800), 11 u00d7 10 divisions

Trigger Types: Edge, Pulse Width, Logi, Video, Time Out, Slope, Runt, and N Edge

Serial Trigger and Decode: UART, LIN, CAN, SPI, I2C; Optional: MIL-STD-1553B, ARINC-429, CAN FD

Math Functions: +, -, u00d7, u00f7, FFT, AX+B, and Advanced Math

Remote Control: PC Software, Smartphone App for iOS & Android, SCPI

Dimensions/Weight: 265 u00d7 192 u00d7 50mm / 10.4 u00d7 7.6 u00d7 2"; 1.9kg/4.2lb (with battery)

Battery/Duration: 7.4V, 7500 mAh / 2H

TO1004 Tablet Oscilloscope:

Analog Channels: 4

Bandwidth:
100 MHz

Rise Time: u22643.5ns

Sampling Rate (Max.):
1 GS/s

Memory Depth (Max.):
110 Mpts

Waveform Collection Rate (Max.):
78,000 wfms/s

Input Sensitivity Range: 1mV/div ~ 10V/div (1Mu03a9)

Bandwidth Limit: 20 MHz, High & Low Pass (30 Hz ~ Full)

Segmented Storage: Not supported

Internal Storage: 32 GB

I/O Ports: Wi-Fi, USB 3.0/2.0 Host, USB Type-C, Grounding, HDMI, Trigger Out

Vertical Resolution: 8-bit

Display: 10.1" TFT-LCD capacitive touchscreen (1280u00d7800), 11 u00d7 10 divisions

Trigger Types: Edge, Pulse Width, Logc, Video, Time Out, Slope, Runt, and N Edge

Serial Trigger and Decode: UART, LIN, CAN, SPI, I2C; Optional: MIL-STD-1553B, ARINC-429, CAN FD

Math Functions: +, -, u00d7, u00f7, FFT, AX+B, and Advanced Math

Remote Control: PC Software, Smartphone App for iOS & Android, SCPI

Dimensions/Weight: 265 u00d7 192 u00d7 50mm / 10.4 u00d7 7.6 u00d7 2"; 1.9kg/4.2lb (with battery)

Battery/Duration: 7.4V, 7500 mAh / 5H

Features:

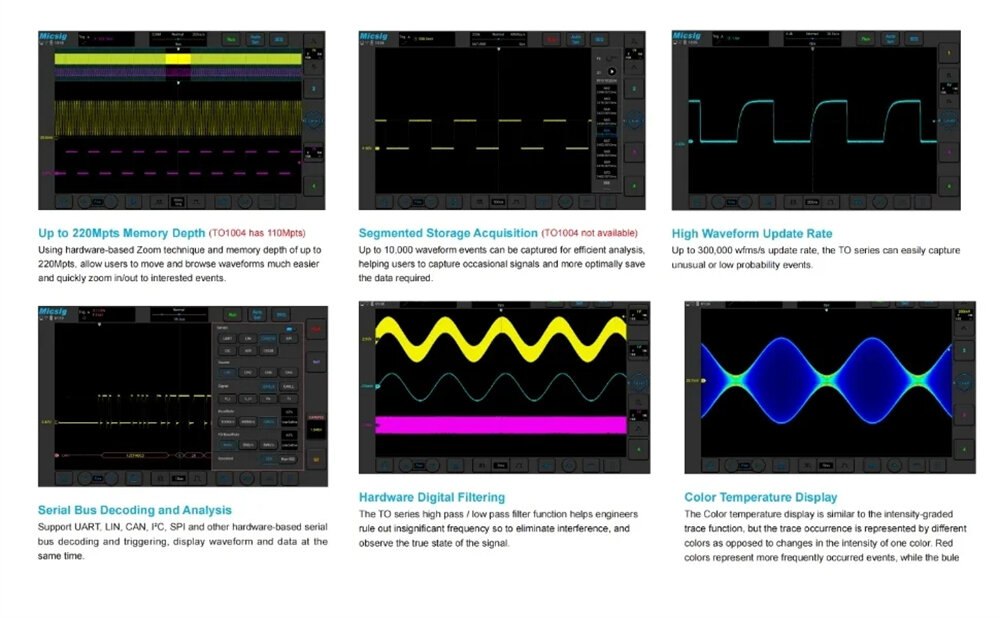

1.High-Performance Sampling Rate and Memory Depth:

Achieve precise and detailed signal analysis with a maximum 2 GS/s sampling rate and up to 220 Mpts memory depth (TO2004). The large memory capacity supports efficient waveform storage for prolonged testing sessions.

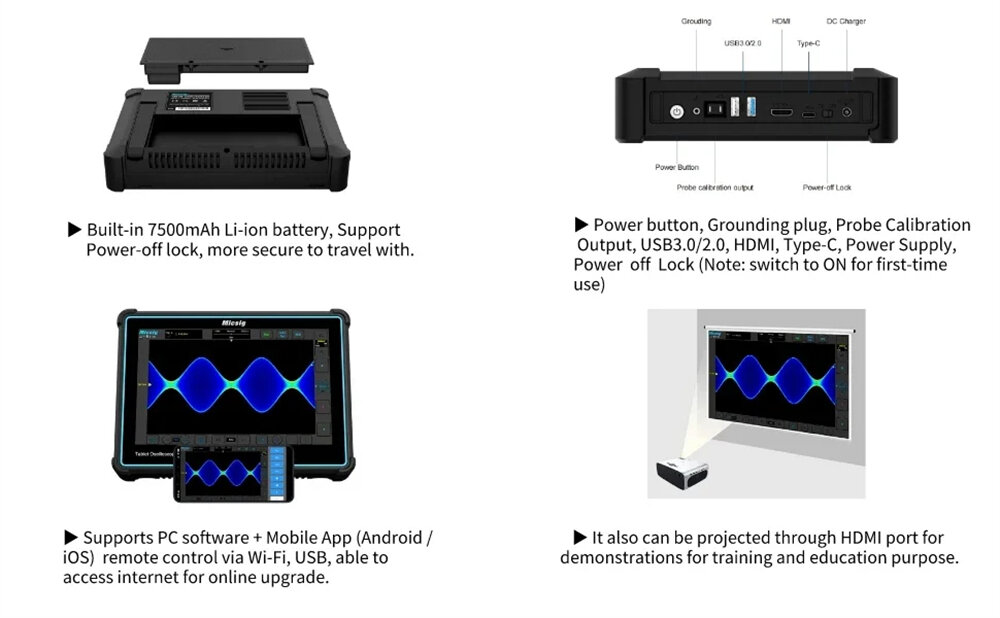

2.Comprehensive I/O Connectivity:

With Wi-Fi, USB 3.0/2.0 ports, USB Type-C, HDM, and trigger output, this oscilloscope ensures seamless integration with various devices and platforms for data transfer and analysis.

3.Versatile Triggering and Decoding Options:

Supports multiple trigger types and serial decoding for UART, LIN, CAN, SPI, I2C, MIL-STD-1553B, ARINC-429, and CAN FD protocols, enabling high-precision testing for embedded system applications.

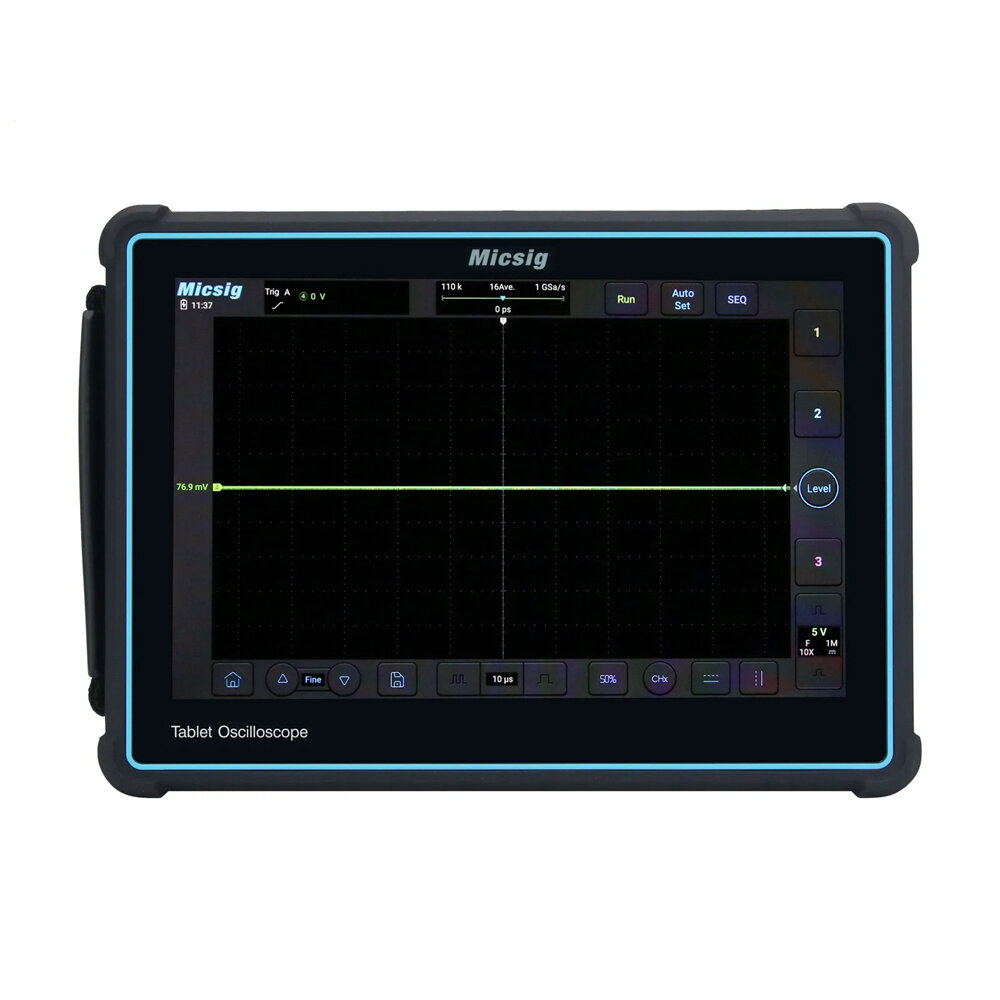

4.Intuitive Capacitive Touchscreen Interface:

The 10.1-inch TFT-LCD touchscreen delivers an easy-to-use interface with a high-resolution display (1280u00d7800). Its 11 u00d7 10 division grid provides exceptional clarity for detailed waveform observation.

5.Portable Design with Extended Battery Life:

Compact and lightweight, weighing only 1.9 kg/4.2 lb, it is highly portable with a 7.4V, 7500 mAh battery for up to 5 hours of use (TO1004), making it ideal for fieldwork and lab environments.

Package Included:

1 x Tablet Oscilloscope
