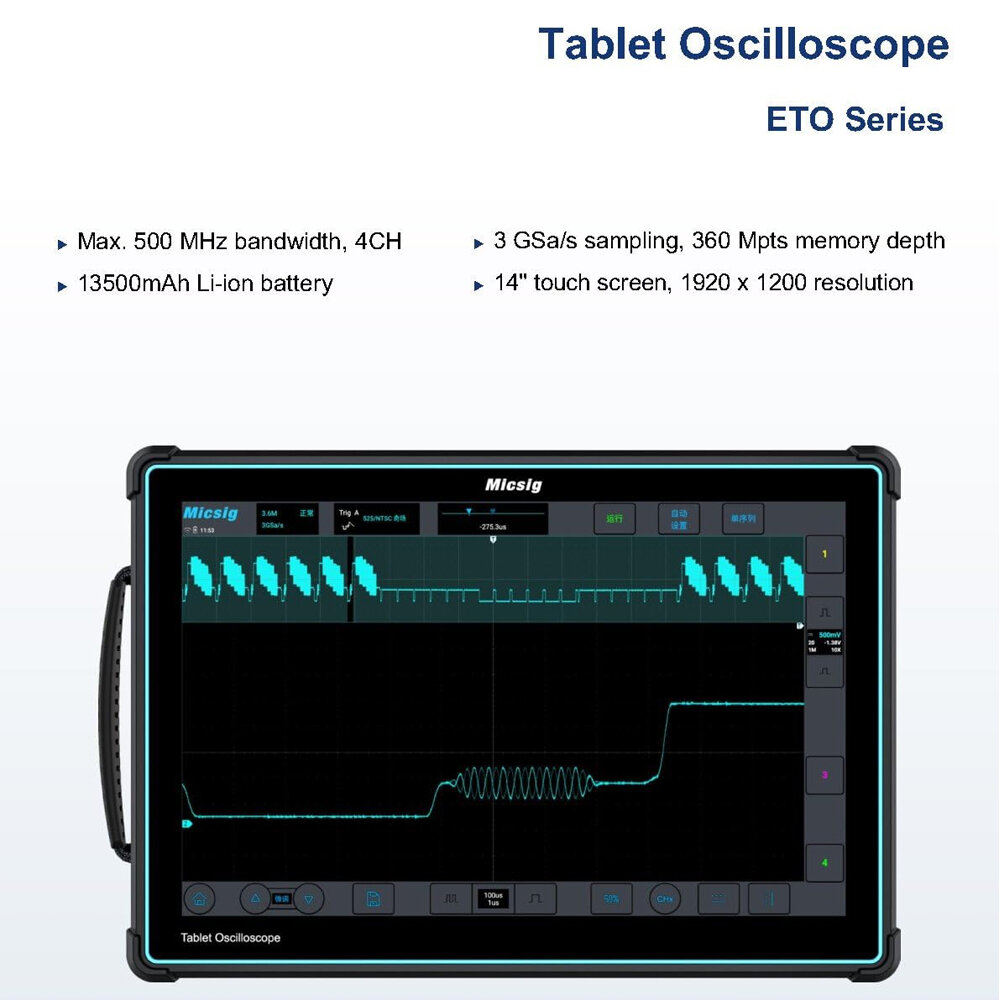

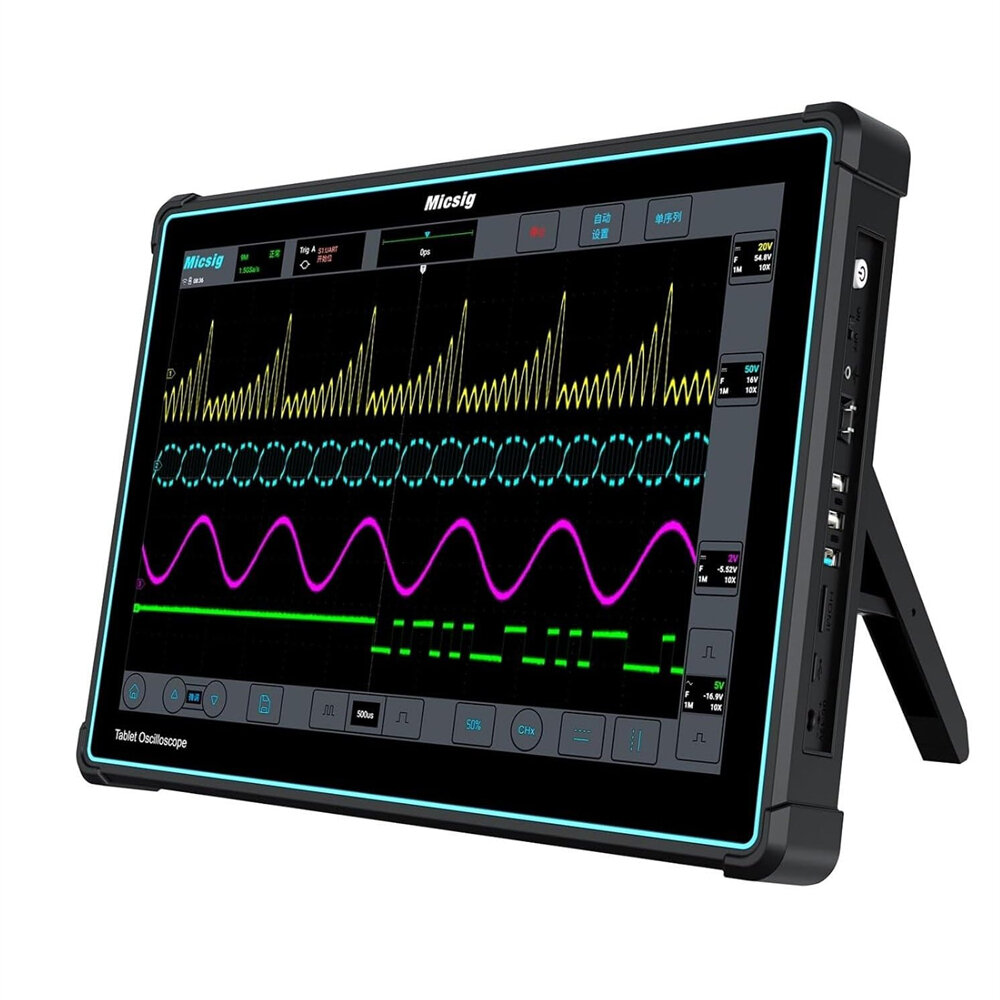

ETO3504 ETO5004 Digital Oscilloscope 500MHz Bandwidth 4 Channels 3GSa/s High Sampling Rate Large Memory Depth USB Type-C HDM Fast Waveform Capture
196
Shipping to: United States |
Express delivery: 7-12 business days |
Standard delivery: 15-25 business days
Guaranteed Safe Checkout
Free Gift
Shipping Policy
Return PolicyFree Gift
Welcome to Roymall, your professional website for purchasing premium department store gifts. We highly value and appreciate your support, and we want to express our gratitude by adding an extra touch of excitement to your purchases. When you shop with us, you not only get to enjoy high-quality products that enhance your lifestyle, but you'll also receive an exclusive free gift with every order you place. Ready to explore our collection and find your perfect gifts? Browse our selection of premium department store items, place your order, and look forward to the excitement of your free gift arriving alongside your purchase.Shipping Policy
We will work hard to deliver items to you after receiving your orders and make sure they arrive safely. Delivery details will be provided in your confirmation email.In most cases, orders are processed within 2 days.Under special circumstances, it will be delayed as follows: When you place an order on Saturday, Sunday or public holidays, it will be delayed for 2 days..Normally, it needs 5-7 working days (Monday to Friday) without being affected by flight delay or other environmental factors..Because our shipping service is worldwide so the delivery times will depend on your location so it may need a few times and please wait patiently if you are in remote districts or countries.1. Return & Exchange Policy
We only accept items purchased from roymall.com. If you purchase from our local distributors or other retailers, you cannot return them on our side. Final sales items or free gifts are not acceptable for a return. To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging.After receiving return instructions from us, please package up your returned items and drop your package at the local post office or another courier.We will process your return or exchange item within 3-5 working days after we receive it. The refund will be processed and credited automatically to your original method of payment.No returns or exchanges can be accepted if the product was custom produced, including custom size, custom color, or custom printed.Need more help, please contact us. service@roymall.com or Whatsapp: +447549870296
2.Refund Policy
You'll get a full refund or 100% store credit after we receive the returned package and check it. The refund will be processed and credited automatically to your original method of payment. Please note that shipping costs and any duties or fees are not refundable. The extra shipping costs are non-refundable once the package has been shipped. You are responsible for paying these fees and we’re unable to waive or refund them, even if the order is returned back to us.Once we received and confirmed your returned item, we will send you an email to notify you that we have received your returned item. We will also notify you of the approval or rejection of your refund.If you have any problems regarding the refund process, please contact us. service@roymall.com or Whatsapp: +447549870296
ufeff
Specifications:
ETO5004:
Bandwidth: 500MHz
Rise Time: u2264 0.7ns
Analog Channels: 4
Sampling Rate: 3GSa/s
Memory Depth: 360Mpts
Waveform Capture Rate: 230,000 wfms/s
Vertical Resolution: 8 bits
Noise: < 90u03bcVrms
Bus Decoding (Standard): RS-232/422/485/UART, CAN, CAN FD, LIN, SPI, Iu00b2C, ARINC429, MIL-STD1553B
Interfaces: USB 3.0/2.0 Host, USB Type-C, Ground, HDI, Trigger Out
ETO3504:
Bandwidth: 350MHz
Rise Time: u2264 1ns
Analog Channels: 4
Sampling Rate: 3GSa/s
Memory Depth: 360Mpts
Waveform Capture Rate: 230,000 wfms/s
Vertical Resolution: 8 bits
Noise: < 90u03bcVrms
Bus Decoding (Standard): RS-232/422/485/UART, CAN, CAN FD, LIN, SPI, Iu00b2C, ARINC429, MIL-STD1553B
Interfaces: USB 3.0/2.0 Host, USB Type-C, Ground, HDM, Trigger Out

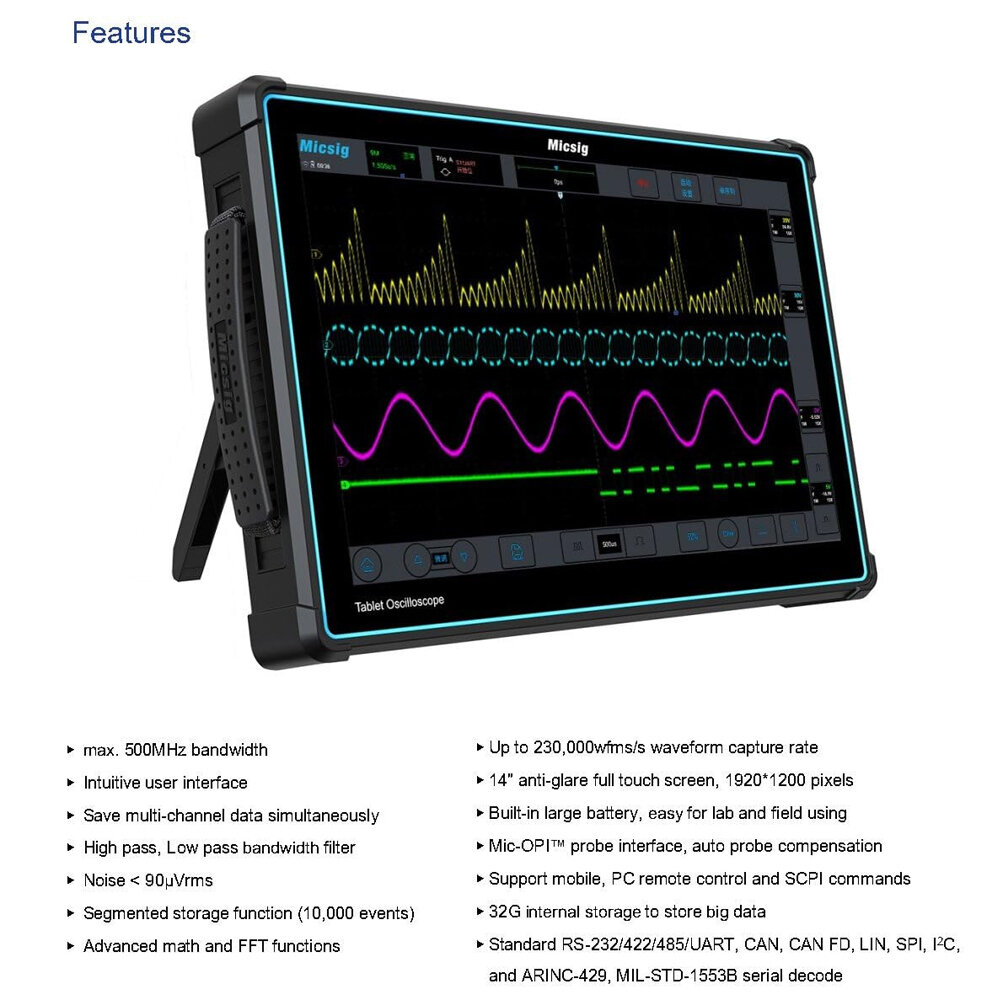

Features:
1. High Bandwidth for Wide Applications
With bandwidths of up to 500MHz (ETO5004 model) and 350MHz (ETO3504 model), these oscilloscopes are ideal for rapid signal analysis in industries like telecommunications, automotive, and aerospace.
2. Advanced Decoding Capabilities
Supports multiple standard bus decoding protocols such as RS-232, SPI, Iu00b2C, and CAN, enabling precise and extensive debugging in complex electronic systems.
3. Large Memory Depth
Featuring a 360Mpts memory depth, these oscilloscopes allow extended data acquisition, ensuring accurate insights during long signal capture periods.
4. Exceptionally High Waveform Capture Rate
A waveform capture rate of 230,000 wfms/s ensures quick detection of signal anomalies, helping users improve efficiency in testing scenarios.
5. Comprehensive Connectivity Options
Equipped with USB 3.0/2.0 Host, USB Type-C, HDM, and Trigger Out, providing seamless integration with other devices and enhanced flexibility in various environments.
Package Included:
1 x Oscilloscope
