Specifications:

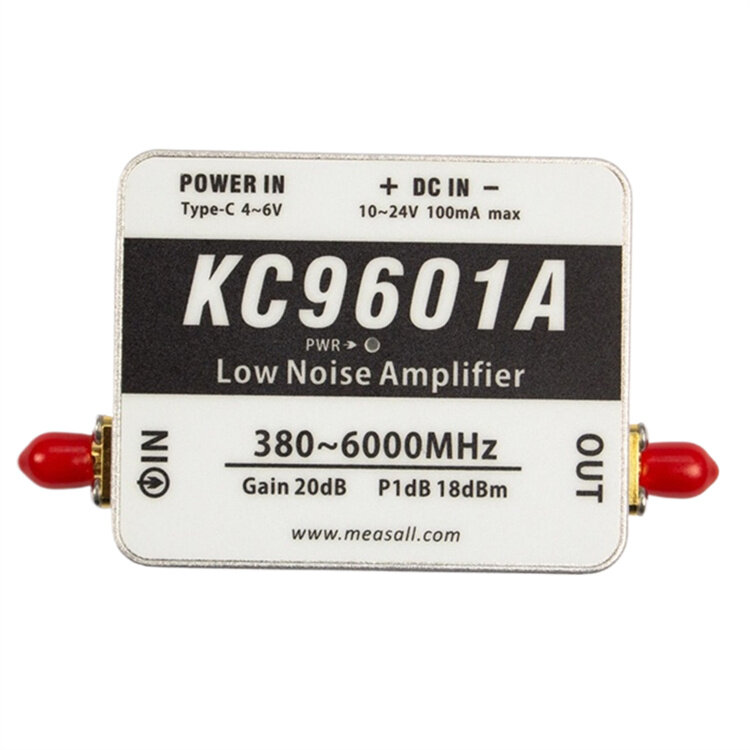

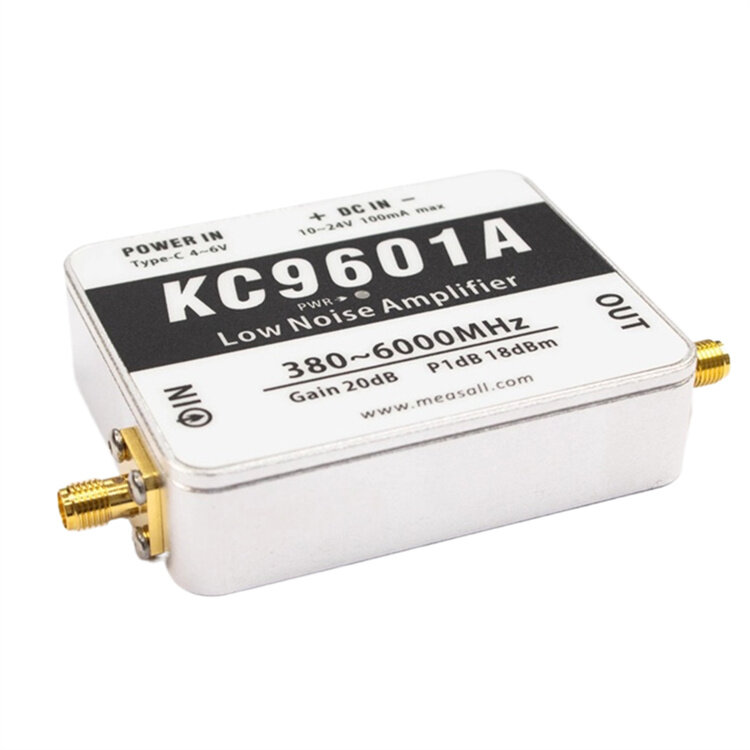

KC9601A:
Type: Low Noise Amplifier Module (LNA Module)
Operating Frequency: 380MHz - 6000MHz (6GHz)
*(Note: 240MHz-380MHz gain is acceptable, input VSWR may be too large)*
Typical Gain: 20dB (Please refer to the frequency-gain test chart for specific values)
Minimum Gain: 16dB (guaranteed value)
Output Power@1dB Compression Point (Pout@1dB): u2265 18dBm (guaranteed value)
Noise Figure (NF): 2.0 dB (typical value)
RF Interface: SMA Female (Female, Male)

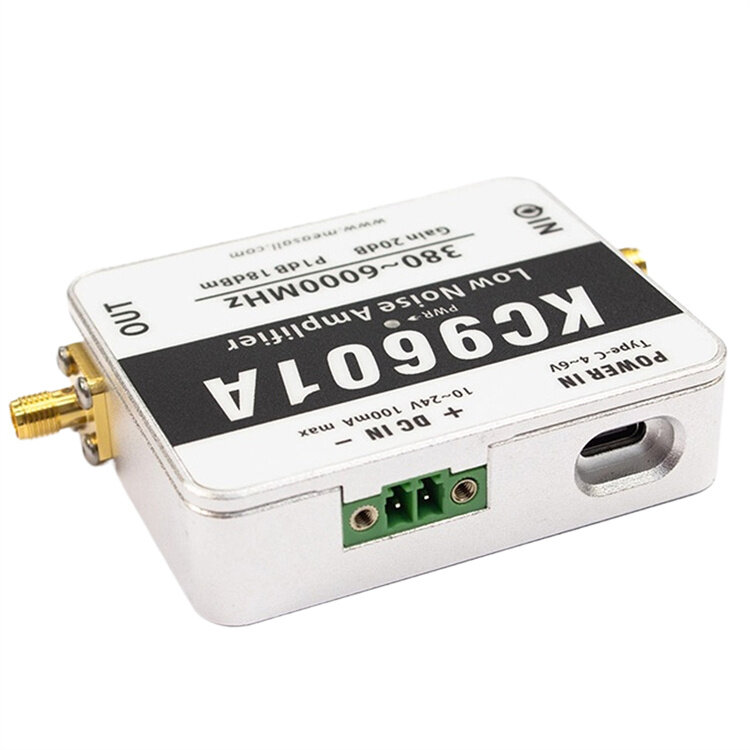

Power Supply Voltage:
Option 1: 4V - 6V DC (powered by USB Type-A port)
Option 2: 7V - 24V DC (powered by power outlet)
Built-in voltage regulator circuit, you can choose any one of them for power supply!
Operating temperature: -40u00b0C ~ +60u00b0C
Packaging size: 155 x 102 x 40 mm
Weight: 180g

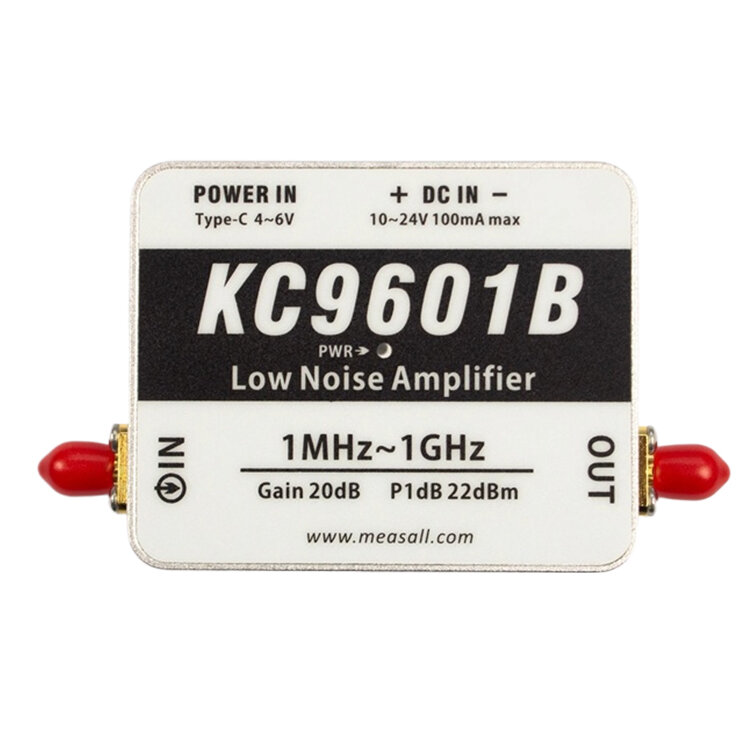

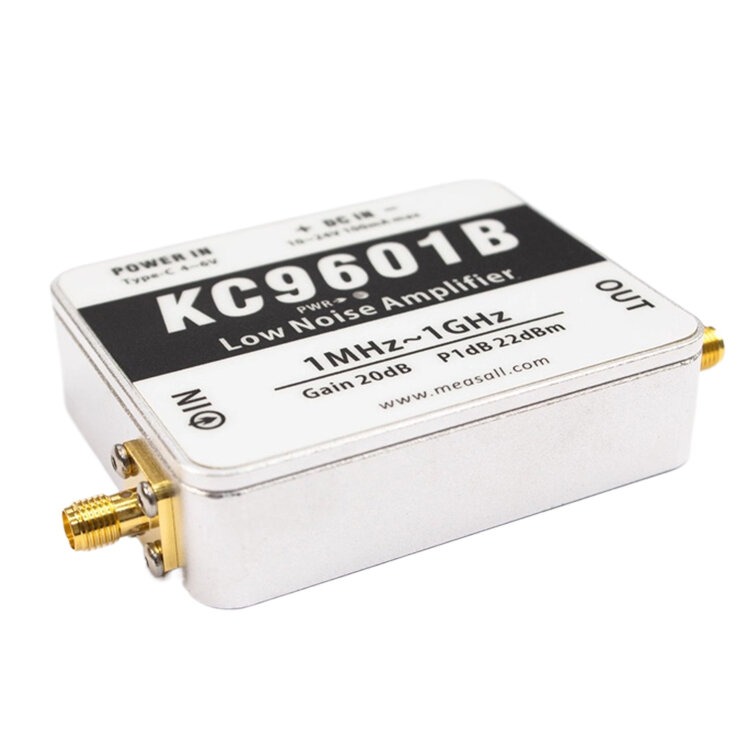

KC9601B:
Type: High linearity low noise amplifier module
Frequency range: 1MHzu20131000MHz (full-band optimization)
Typical gain: 21dB (measured curves refer to the attached figure)
Minimum gain: 18dB (guaranteed value)
Output power @1dB compression point: u226520dBm (guaranteed value)
Noise figure (NF): 1.5dB (typical value)
RF interface: SMA female (female)

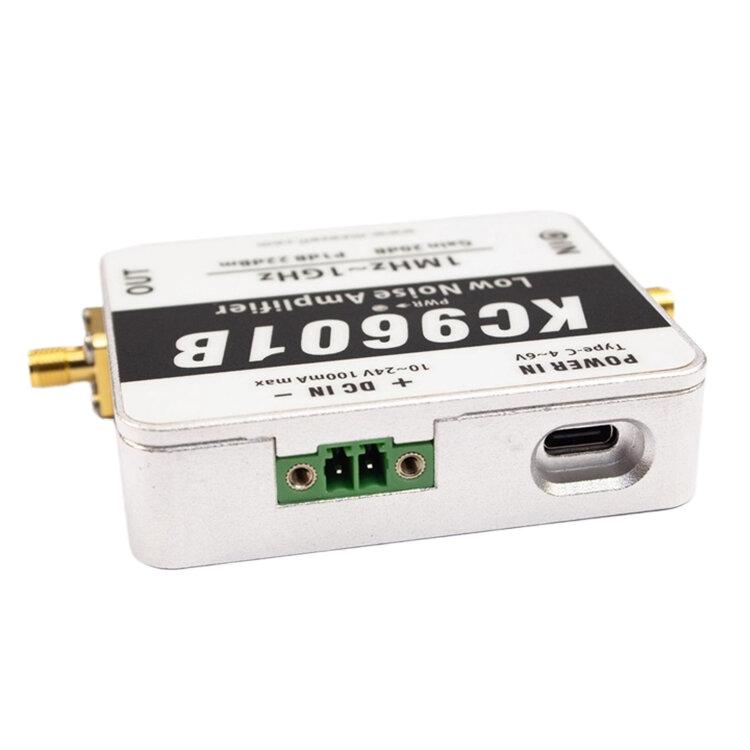

Power supply:
USB Type-A port: 4-6V DC
DC power socket: 7-24V DC
u25b7 Choose one, built-in voltage regulator
Operating temperature: -40u00b0C ~ +60u00b0C
Dimensions: 155u00d7102u00d740mm
Weight: 180g

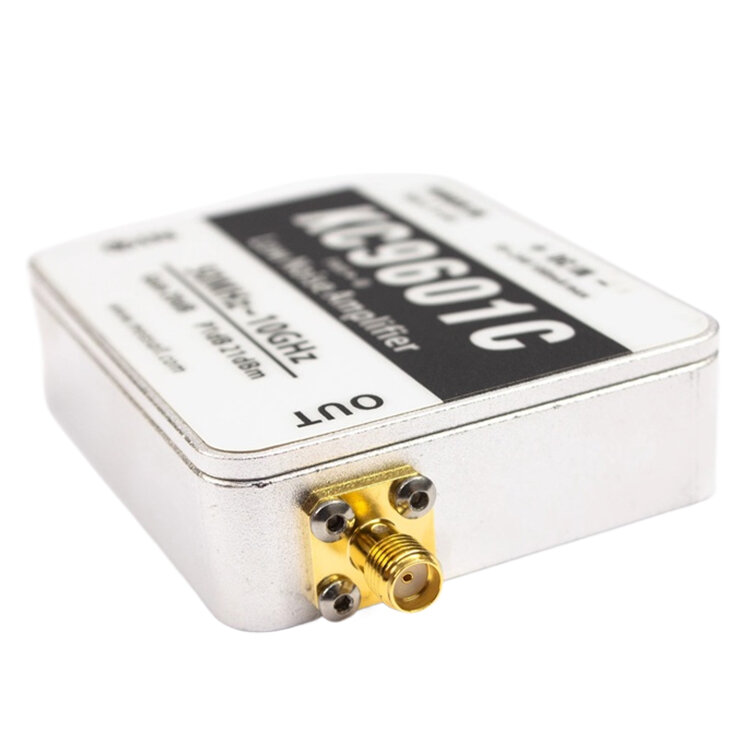

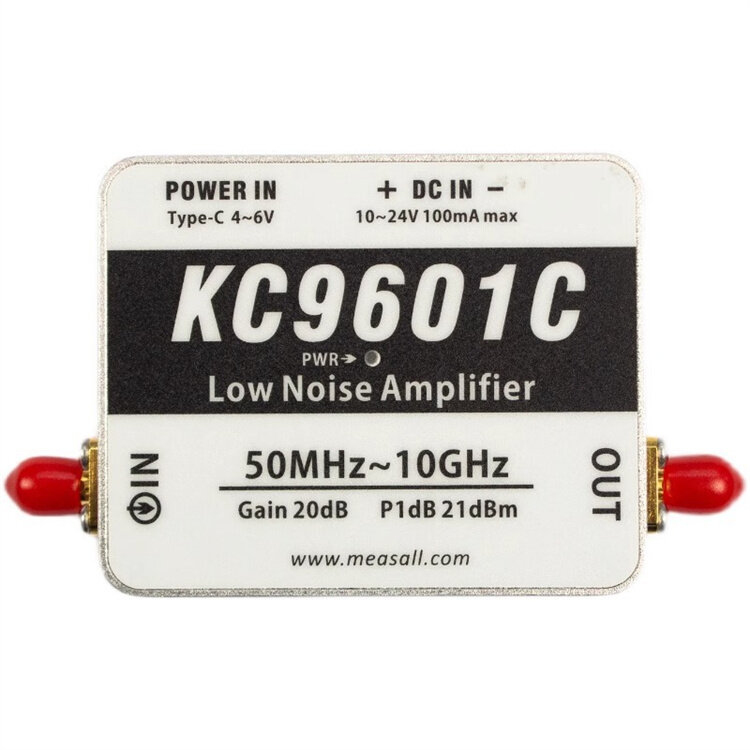

KC9601C:
Type: Experimental ultra-wideband low-noise amplifier
Frequency range: 50MHz u2013 10,000MHz (10GHz)
Typical gain: 21dB
Minimum gain: 17dB (guaranteed value)
Output power @1dB compression point: u226520dBm (guaranteed value)
Noise figure (NF): 1.5dB (typical value)
RF interface: SMA female (female)

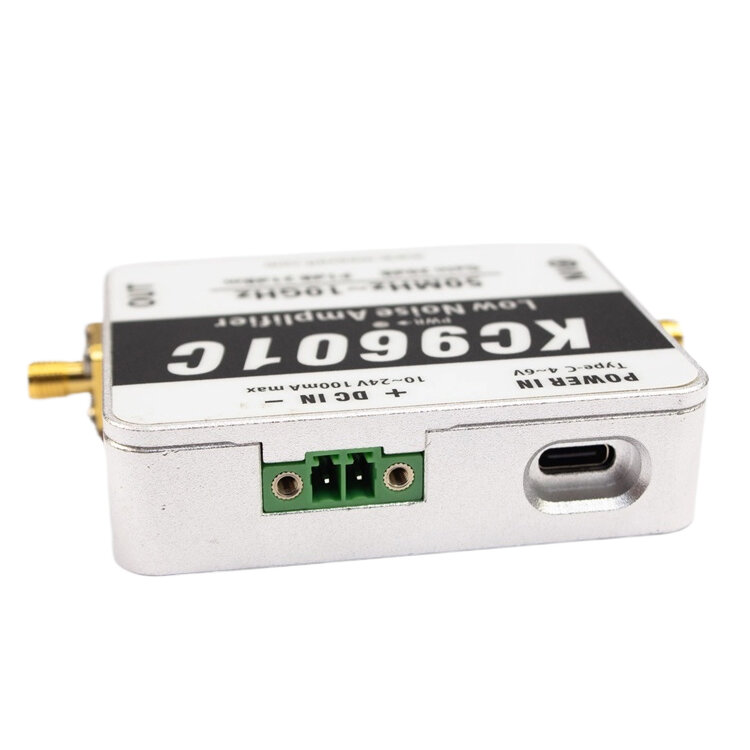

Power supply:
Type-C USB interface: 4-6V DC (mainstream notebook/power bank power supply)
DC power socket: 7-24V DC (system integrated power supply)
Operating temperature: -40u00b0C ~ +60u00b0C
Dimensions: 155u00d7102u00d740mm (compatible with KC9601 series installation position)
Weight: 180g

Features:

KC9601A:
1. Ultra-wideband coverage (380MHz - 6GHz): One device with multiple uses, perfectly covering the wide spectrum from 380MHz to 6GHz, especially optimizing key frequency bands such as 2.4GHz (WiFi/bluetooth) and 5.8GHz (WiFi/Radar)!
2. High gain & ultra-low noise: Provide up to 20dB typical gain, strongly amplify weak signals; noise figure as low as 2.0dB (typical value), significantly improve receiving sensitivity, capture clearer signals!
3. Strong output capability: Guaranteed output 1dB compression point (Pout@1dB) u2265 18dBm, good linearity, strong driving ability of the post-stage, ensuring stable signal without distortion!
4. Dual power supply, super flexible: Support 4-6V USB power supply or 7-24V DC power socket power supply, built-in voltage regulation, choose one, adapt to various application scenarios!
5. Industrial-grade ruggedness and durability: Wide operating temperature range -40u00b0C to +60u00b0C, no fear of severe cold and heat, stable and reliable!
6. Standard interface & compact and lightweight: The RF interface uses a standard SMA female (female) connector, which is highly versatile; the size is only 155x102x40mm, and the weight is only 180g, which is easy to integrate and install!
7. Ready to use out of the box: Comes with a power plug, connect and work, worry-free and convenient!

KC9601B:
1. High-frequency linearity king: Designed for 1MHz-1000MHz, ultra-high IP3 value (needs to be supplemented by actual measurement), greatly improves the system dynamic range, and suppresses interference more strongly!
2. Dual high-performance engines:
u2726 21dB high gain (typical value) strongly amplifies weak signals;
u2726 Ultra-low noise factor 1.5dB (typical value), the receiving sensitivity soars!
3. Strong output capability: guarantee 20dBm output power @1dB compression point (Po1dB), no pressure on driving the next stage, no signal distortion!
4. Flexible dual power supply adaptation: support 4-6V USB power supply or 7-24V DC power supply, built-in voltage regulator, plug and play!
5. Industrial-grade rugged quality: -40u00b0C ~ +60u00b0C wide temperature operation, no fear of harsh environment!
6. Compact and easy to integrate: only 155u00d7102u00d740mm, weighing 180g, standard SMA female interface, ready to use!

KC9601C:
1. Ultra-wideband coverage (50MHz-10GHz): covers 50MHz to 10GHz ultra-wide spectrum, supports 5G/satellite communication/millimeter wave experiments and other advanced applications!
2. Three high performances in one:
u2726 21dB high gain (typical value) amplifies weak signals
u2726 1.5dB ultra-low noise figure (typical value) improves signal-to-noise ratio
u2726 20dBm high linear output (Po1dB guaranteed value) suppresses signal distortion
3. Revolutionary power supply design: supports 4-6V Type-C USB power supply (convenient experiment) or 7-24V DC power supply (system integration), one-wire connection works immediately!
4. Laboratory artifact positioning: specially optimized for RF experiments, prototype development, scientific research testing, cost-effective debugging-free solution!
5. Industrial-grade basic protection: -40u00b0C ~ +60u00b0C wide temperature operation, meeting the needs of laboratories and indoor industrial environments!

Package Include:

1x Amplifier Module Board
