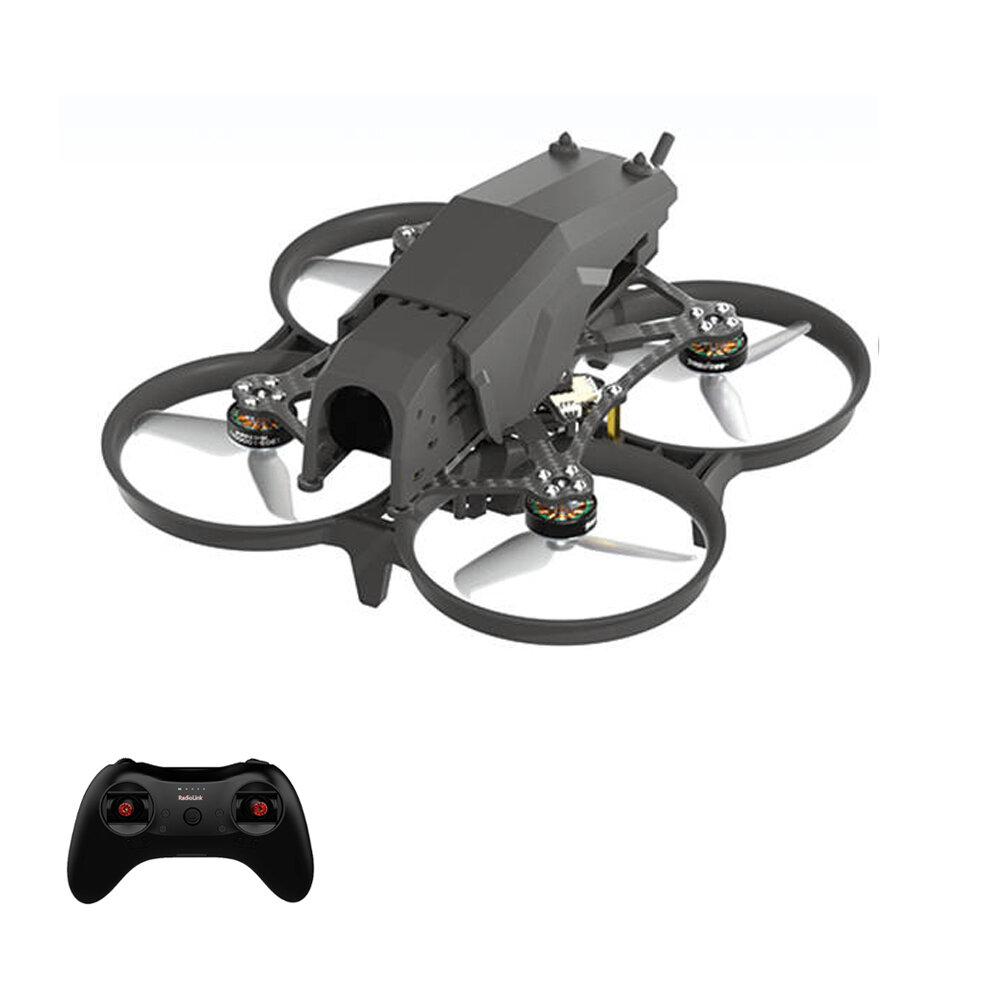

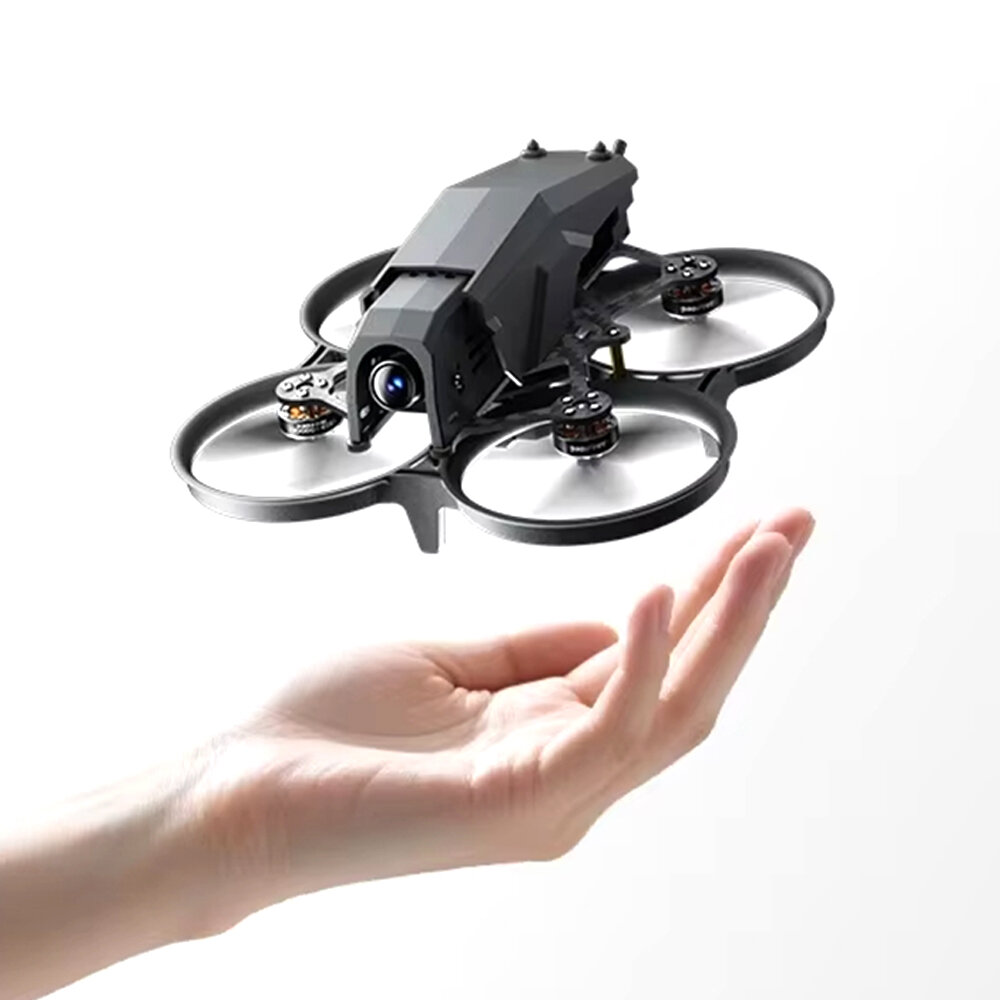

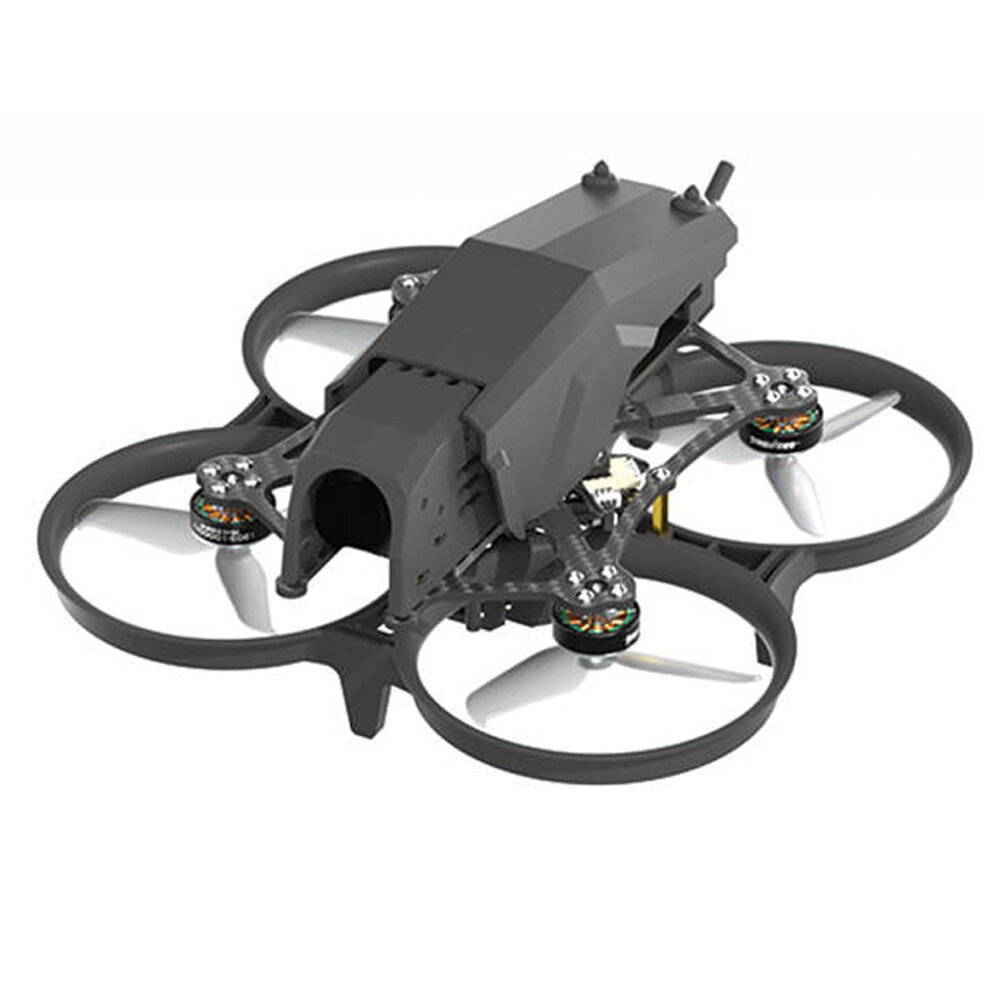

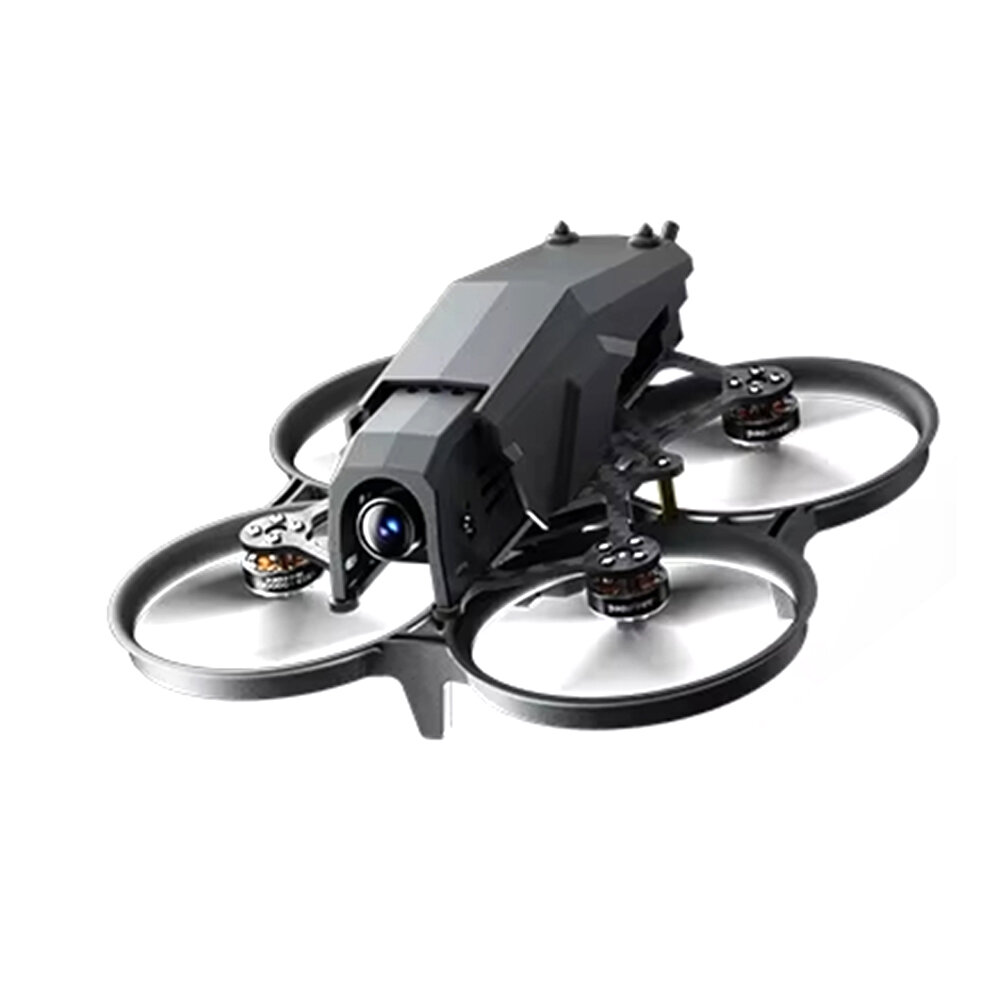

FPV Drone

Weight of Drone (Without Battery):

120g

Takeoff Weight Without Load:

165g

Dimension Frame:

153*153*70mm

Diagonal Length:

110mm

Material Frame:

Carbon Fiber

Shell Material: Full-Coverage Propeller Guards:

Black TPE fine frosted finish; Camera and Battery Fixing Part: Black ABS and PC fine frosted finishNylon and Fiber

Flight Time:

7 Minutes

Ascnt Speed:

50km/h

Horizontal Speed(at sea level, no wind):

110km/h

Flight Distance:

2000 meters, maximum range is tested in an unobstructed area free of interference

Max Service Ceiling Above Sea Level:

Same as the flight distance, the flight distance and height can be set as you need in GeoFence of Mission Planner

Maximum Wind Resistance:

Moderate breze

Flight Modes:

It is default with Pos-Hold Mode, Alt-Hold Mode, Stabilize Mode, Manual Mode and Turtle Mode

Positional Accuracy:

20 centimeters

Operating Temperature:

-30u2103~85u2103

Power System

Motor:

SZ-SPEED 1303-10000KV Motor

Flight Control System:

Radiolink All-In-One Flight Controller ArduBeta_aio with 4-in-i ESC and OSD module integrated

Battery:

Gemfan 2512 Propellers

Propeller:

Gensace 2S 850mAh 35C XT30 Battery

Positioning System

Optical Flow:

Optical Flow and Laser Two-in-one Module

Operating Voltage:

3.7uff5e5.0V

Operating Current:

u226470mA

TOF FOV:

HFOV: 20u00b0; VFOV: 17u00b0

Operating Temperature:

-20 to 60u00b0C

Measurement Distance:

4 meters indoors/ outdoors

Light Source Wavelength:

940nm

Optical Flow FOV:

Horizontal/Vertical: 30u00b0

Frame Rate:

50Hz

Ambient Illumination:

>20Lux

Maximum Measurement Speed:

7m/s at a height of 1 meter

Remote Control System

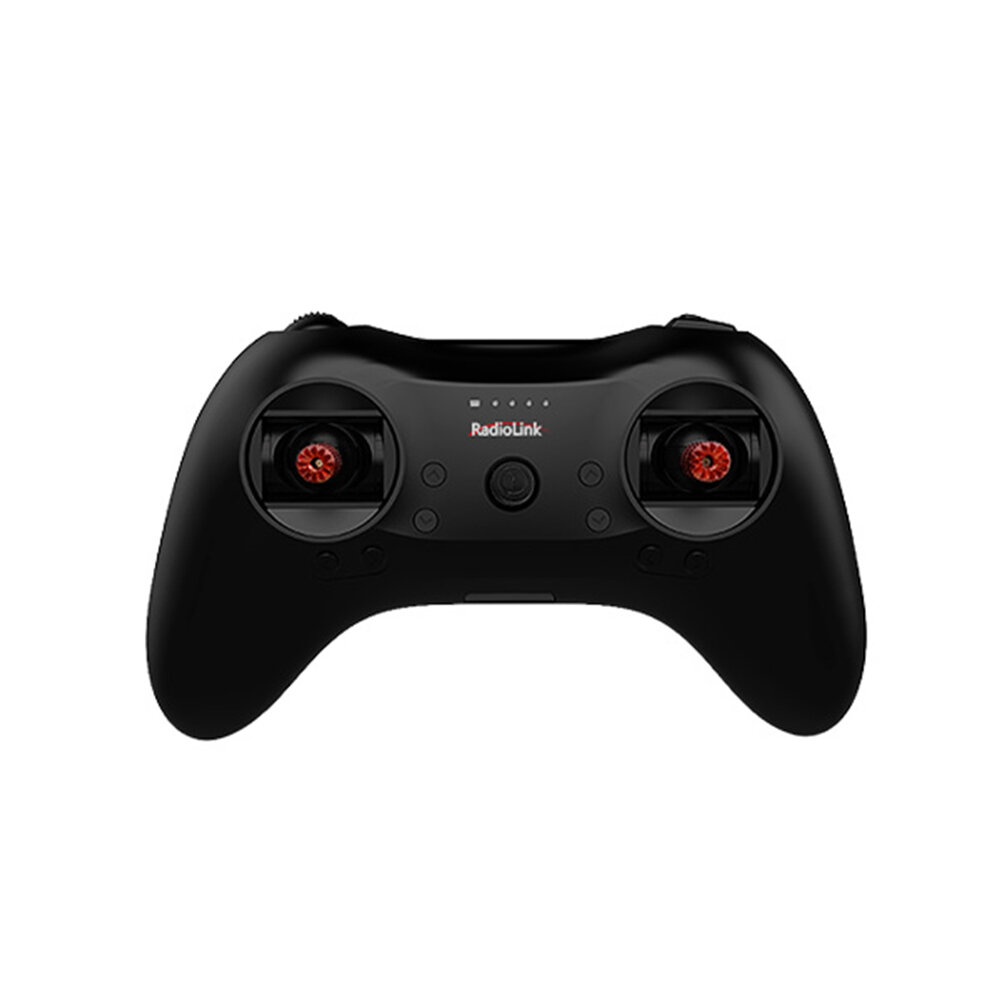

Transmitter:

Radiolink 8 channels transmitter T8S

Receiver:

R8SM

Frequencies Band:

2.4GHz ISM(2400MHz~2483.5MHzuff09

Transmission Power:

<100mW(20dbm)

Control Distance:

2000 meters, maximum range is tested in an unobstructed area free of interference

Charger System

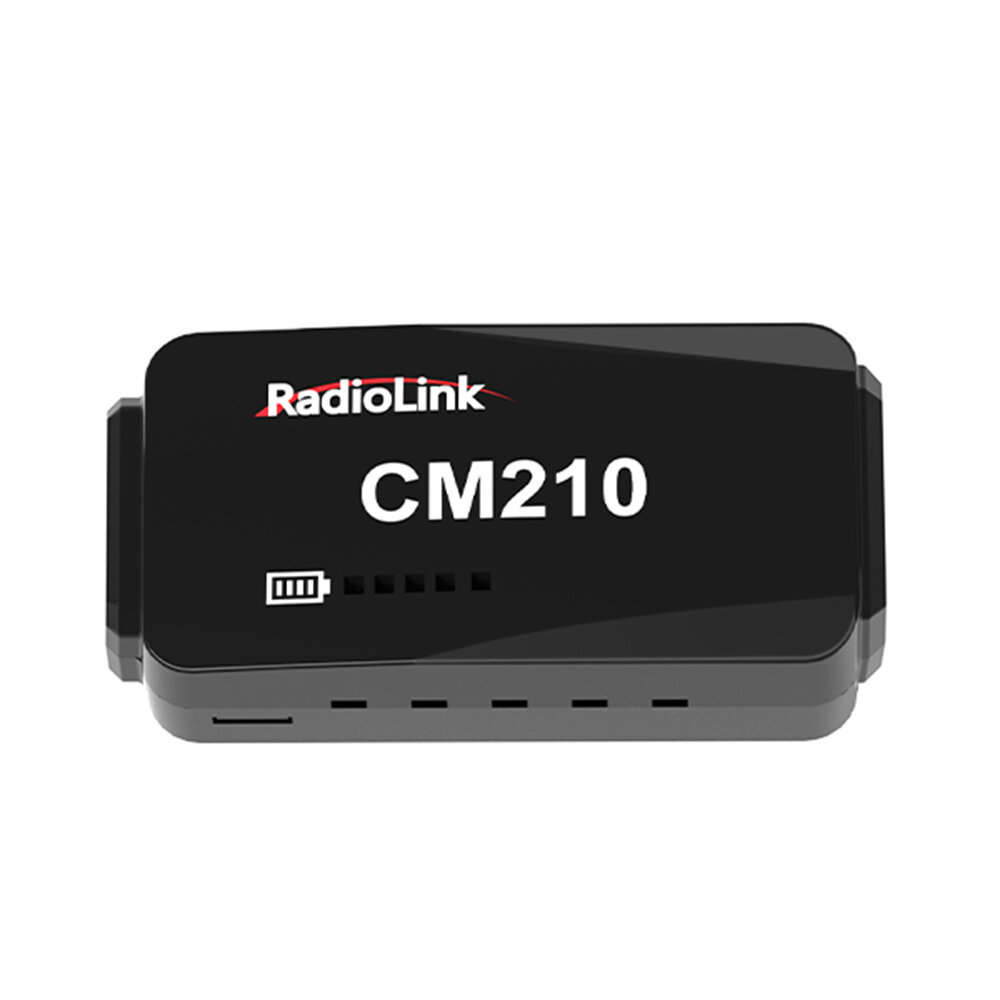

Charger:

Radiolink CM210

Charging Input:

DC 5V

Charging Current:

1A@5V/2A@5V

Compatible Battery:

only for 2S LiPo battery

Analog Video Transmission Video Transmission

Model:

ZENCHANSI BROWN BEAR 008

Communication Frequency:

5.725-5.850GHz

Power:

50 mW /200 mW /600mW/Power off(PitMode)

Current(12V):

350mA(50mW)/510mA(200mW)/750mA(600mW)

Input Voltage:

7-24V DC

Antenna:

MMCX ANT

Dimension:

27*27*4.8mm(1.06"*1.06"*0.19")

Camera

Model:

Caddx sable camera

Sensor:

1/3u201d Inch Starlight Sensor

Resolution:

1200TVL

FOV:

130u00b0(4:3) / 165u00b0(16:9)

Image:

4:3 & 16:9(Switchable)

Min. Illumination:

0.001LUX

Wide Power Input:

5-27V
