OWON HDS2102A Automotive Diagnostic Oscilloscope 100MHz Bandwidth 500MSa/s Sampling Rate 2 Channels Multimeter CAN LIN Waveform Library Portable Rechargeable Battery
142
Shipping to: United States |
Express delivery: 7-12 business days |
Standard delivery: 15-25 business days
Guaranteed Safe Checkout
Free Gift
Shipping Policy
Return PolicyFree Gift
Welcome to Roymall, your professional website for purchasing premium department store gifts. We highly value and appreciate your support, and we want to express our gratitude by adding an extra touch of excitement to your purchases. When you shop with us, you not only get to enjoy high-quality products that enhance your lifestyle, but you'll also receive an exclusive free gift with every order you place. Ready to explore our collection and find your perfect gifts? Browse our selection of premium department store items, place your order, and look forward to the excitement of your free gift arriving alongside your purchase.Shipping Policy
We will work hard to deliver items to you after receiving your orders and make sure they arrive safely. Delivery details will be provided in your confirmation email.In most cases, orders are processed within 2 days.Under special circumstances, it will be delayed as follows: When you place an order on Saturday, Sunday or public holidays, it will be delayed for 2 days..Normally, it needs 5-7 working days (Monday to Friday) without being affected by flight delay or other environmental factors..Because our shipping service is worldwide so the delivery times will depend on your location so it may need a few times and please wait patiently if you are in remote districts or countries.1. Return & Exchange Policy
We only accept items purchased from roymall.com. If you purchase from our local distributors or other retailers, you cannot return them on our side. Final sales items or free gifts are not acceptable for a return. To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging.After receiving return instructions from us, please package up your returned items and drop your package at the local post office or another courier.We will process your return or exchange item within 3-5 working days after we receive it. The refund will be processed and credited automatically to your original method of payment.No returns or exchanges can be accepted if the product was custom produced, including custom size, custom color, or custom printed.Need more help, please contact us. service@roymall.com or Whatsapp: +447549870296
2.Refund Policy
You'll get a full refund or 100% store credit after we receive the returned package and check it. The refund will be processed and credited automatically to your original method of payment. Please note that shipping costs and any duties or fees are not refundable. The extra shipping costs are non-refundable once the package has been shipped. You are responsible for paying these fees and we’re unable to waive or refund them, even if the order is returned back to us.Once we received and confirmed your returned item, we will send you an email to notify you that we have received your returned item. We will also notify you of the approval or rejection of your refund.If you have any problems regarding the refund process, please contact us. service@roymall.com or Whatsapp: +447549870296

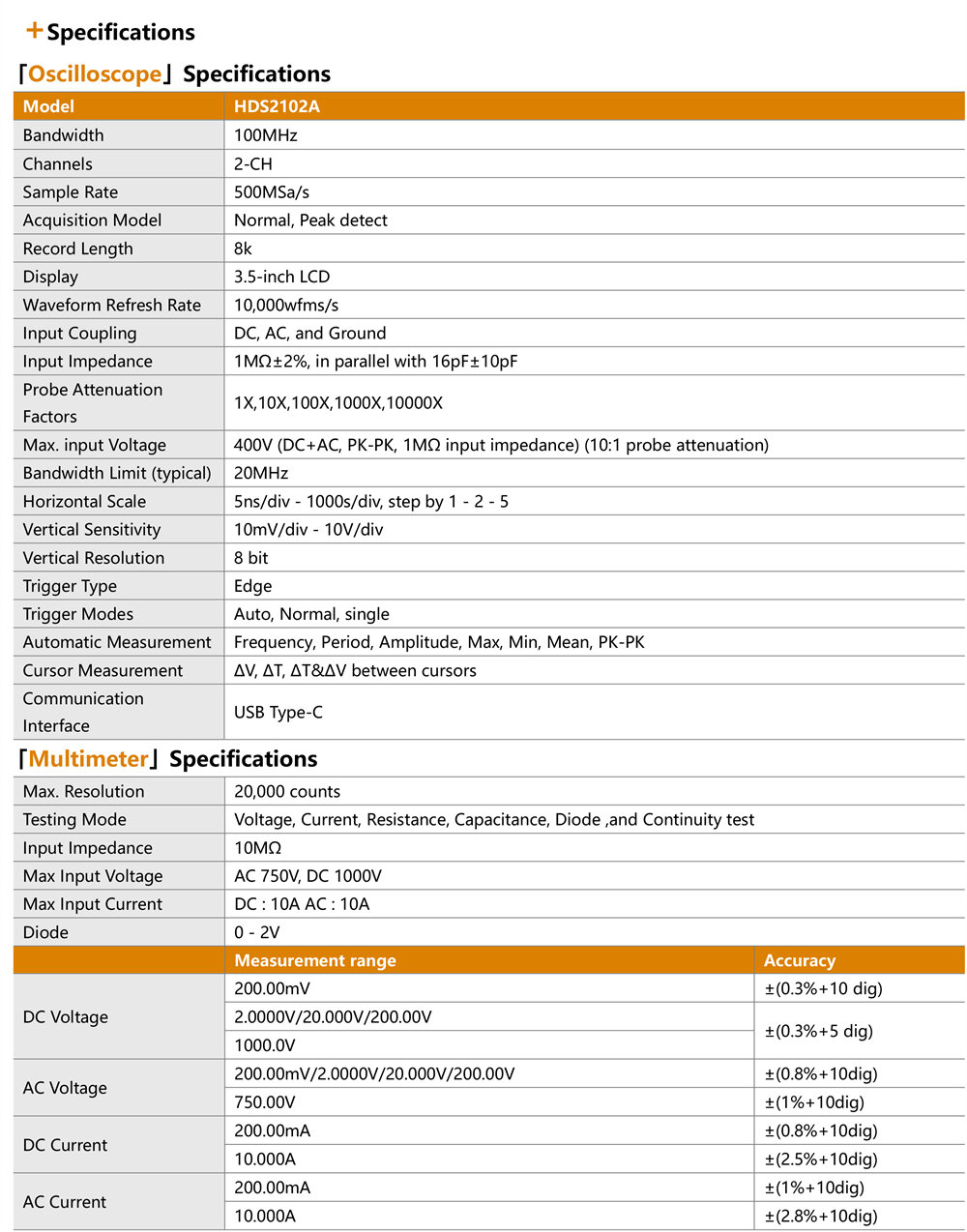

Specifications:
Oscilloscope:
Model: HDS2102A
Bandwidth: 100MHz
Channels: 2
Sample Rate: 500MSa/s
Memory Depth: 8kpts
Waveform Refresh Rate: 10,000 wfms/s
Display: 3.5-inch LCD
Vertical Sensitivity: 10mV/div - 10V/div
Vertical Resolution: 8-bit
Horizontal Scale: 5ns/div - 1000s/div
Max Input Voltage: 400V (DC+AC, PK-PK, 1Mu03a9 input impedance at 10:1 probe attenuation)
Input Impedance: 1Mu03a9u00b12% (parallel with 16pFu00b110pF)
Trigger Modes: Auto, Normal, Single
Automatic Measurements: Frequency, Period, Amplitude, Max, Min, Mean, PK-PK
Cursor Measurements: u2206V, u2206T, u2206T & u2206V
Multimeter:
Max Resolution: 20,000 counts
Testing Modes: Voltage, Current, Resistance, Capacitance, Diode, Continuity
Input Impedance: 10Mu03a9
Max Input Voltage:
AC: 750V
DC: 1000V
Max Input Current:
DC: 10A
AC: 10A
Features:
1. Multifunctional Design: Combines an oscilloscope, multimeter, and automotive diagnostic tool in a compact device, streamlining workflows for professionals in multiple industries.
2. High-Performance Oscilloscope: Offers 100MHz bandwidth, 500MSa/s sampling rate, and 8kpts memory depth for efficient signal analysis with precision.
3. Automotive Diagnostics: Features a specialize waveform library and advanced diagnostic capabilities for real-time fault detection in ignition systems, sensors, injectors, and more.
4. Portable and Energy-Efficient: Powered by a rechargeable 18650 Li-ion battery with up to 6 hours of continuous operation, ensuring convenience during fieldwork.
5. User-Friendly Interface: Equipped with a 3.5-inch high-resolution LCD display and USB Type-C for easy data transfer and power bank charging.
Package Included:
HDS2102A:
1 x Oscilloscope HDS2102A
1 x USB Type-C Cable
1 x Oscilloscope Probe
2 x Multimeter Probe
2 x BNC to Alligator Clip
1 x Soft Bag

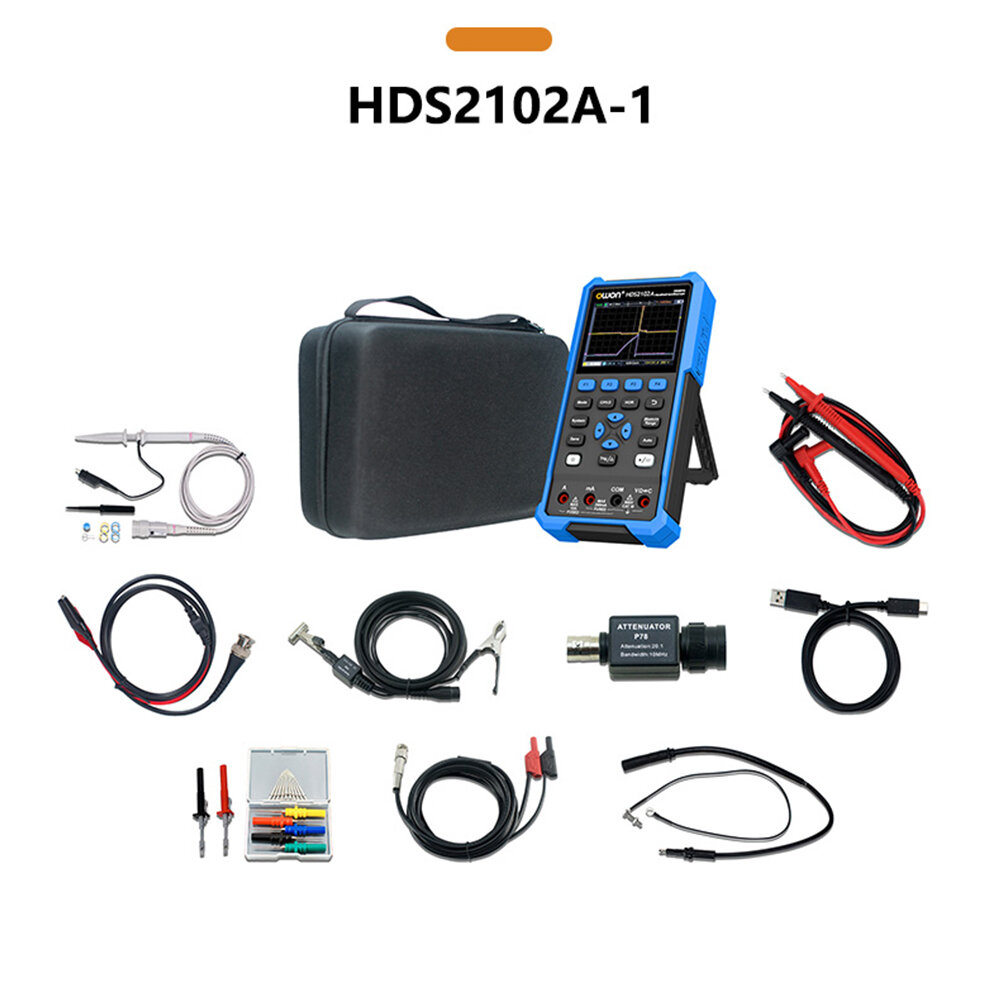

HDS2102A-1:
1 x Oscilloscope HDS2102A
1 x USB Type-C Cable
1 x Oscilloscope Probe
2 x Multimeter Probe
2 x BNC to Alligator Clip
1 x Soft Bag
1 x Auto lgnition Probe
1 x 20_1 Attenuator
1 x Acupuncture Probe Set
2 x Test Clip
1 x Auto Test Leads
2 x COP Extension Cord

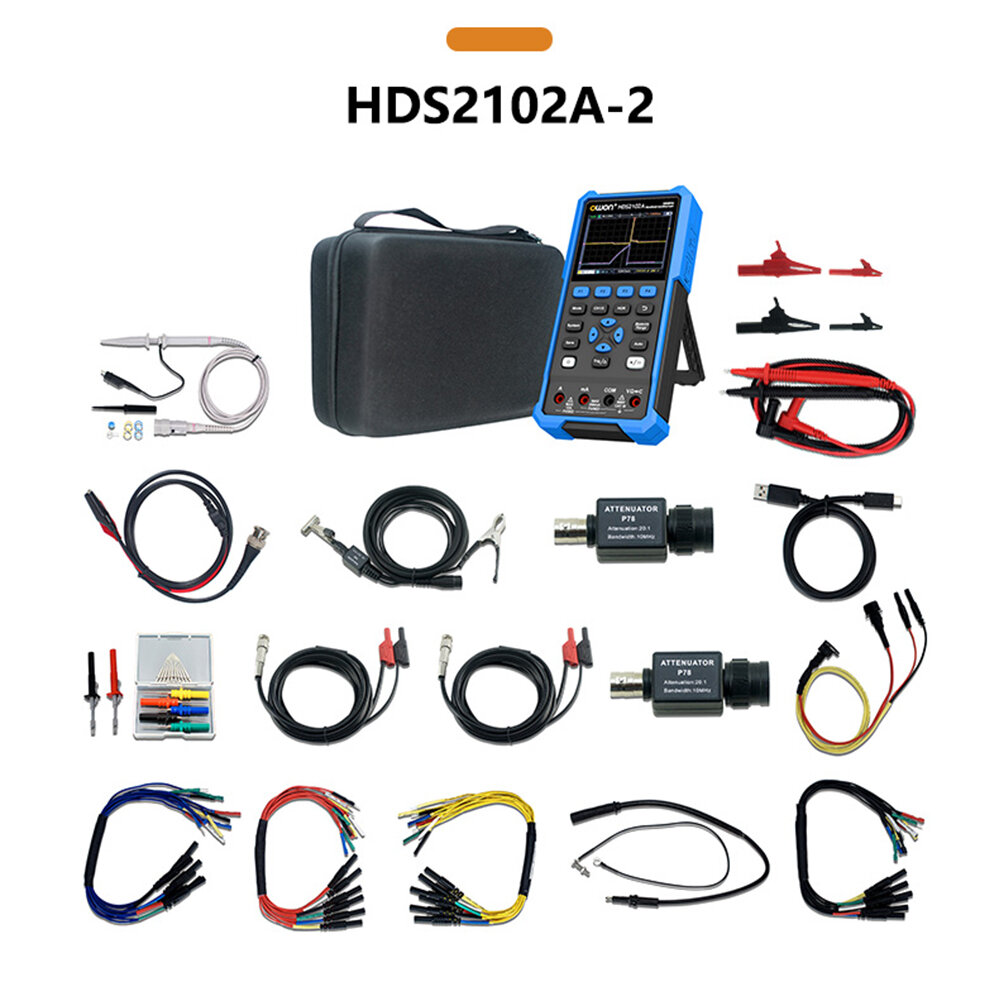

HDS2102A-2:
1 x Oscilloscope HDS2102A
1 x USB Type-C Cable
1 x Oscilloscope Probe
2 x Multimeter Probe
2 x BNC to Alligator Clip
1 x Soft Bag
1 x Auto lgnition Probe
2 x 20_1 Attenuator
1 x Acupuncture Probe Set
2 x Test Clip
2 x Auto Test Leads
2 x COP Extension Cord
4 x Alligator Clip
1 x Breakou Leads
1 x 6-Way Medium Breakou Leads (2.3mm)
1 x 6-Way Micro Breakou Leads(1mm)
1 x 6-Way Small Breakot Leads (1.5mm)
1 x 6-Way Large Breakot Leads(2.8mm)
HDS2102A-3:
1 x Oscilloscope HDS2102A
1 x USB Type-C Cable
1 x Oscilloscope Probe
2 x Multimeter Probe
2 x BNC to Alligator Clip
1 x Soft Bag
1 x Auto lgnition Probe
2 x 20_1 Attenuator
1 x Acupuncture Probe Set
2 x Test Clip
2 x Auto Test Leads
2 x COP Extension Cord
4 x Alligator Clip
1 x Breakou Leads
1 x 6-Way Medium Breakou Leads (2.3mm)
1 x 6-Way Micro Breakot Leads(1mm)
1 x 6-Way Small Breakot Leads (1.5mm)
1 x 6-Way Large Breakot Leads(2.8mm)
1 x CP024 Probe
