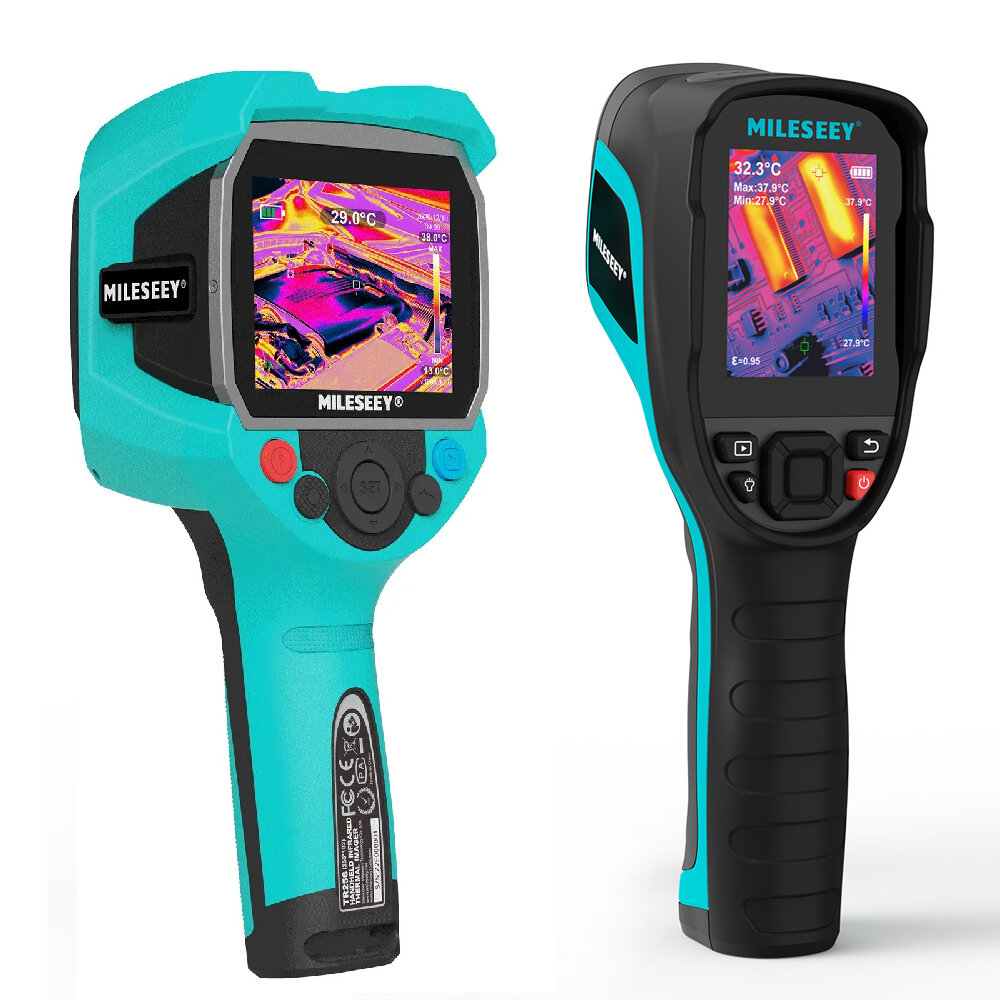

MiLESEEY TR256A/TR256B/TR256E Thermal Imaging Camera 256x192 Pixel 40mK Sensitivity 2.8 Inch Screen Infrared Camera for Temperature Measurement
169
Shipping to: United States |
Express delivery: 7-12 business days |
Standard delivery: 15-25 business days
Guaranteed Safe Checkout
Free Gift
Shipping Policy
Return PolicyFree Gift
Welcome to Roymall, your professional website for purchasing premium department store gifts. We highly value and appreciate your support, and we want to express our gratitude by adding an extra touch of excitement to your purchases. When you shop with us, you not only get to enjoy high-quality products that enhance your lifestyle, but you'll also receive an exclusive free gift with every order you place. Ready to explore our collection and find your perfect gifts? Browse our selection of premium department store items, place your order, and look forward to the excitement of your free gift arriving alongside your purchase.Shipping Policy
We will work hard to deliver items to you after receiving your orders and make sure they arrive safely. Delivery details will be provided in your confirmation email.In most cases, orders are processed within 2 days.Under special circumstances, it will be delayed as follows: When you place an order on Saturday, Sunday or public holidays, it will be delayed for 2 days..Normally, it needs 5-7 working days (Monday to Friday) without being affected by flight delay or other environmental factors..Because our shipping service is worldwide so the delivery times will depend on your location so it may need a few times and please wait patiently if you are in remote districts or countries.1. Return & Exchange Policy
We only accept items purchased from roymall.com. If you purchase from our local distributors or other retailers, you cannot return them on our side. Final sales items or free gifts are not acceptable for a return. To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging.After receiving return instructions from us, please package up your returned items and drop your package at the local post office or another courier.We will process your return or exchange item within 3-5 working days after we receive it. The refund will be processed and credited automatically to your original method of payment.No returns or exchanges can be accepted if the product was custom produced, including custom size, custom color, or custom printed.Need more help, please contact us. service@roymall.com or Whatsapp: +447549870296
2.Refund Policy
You'll get a full refund or 100% store credit after we receive the returned package and check it. The refund will be processed and credited automatically to your original method of payment. Please note that shipping costs and any duties or fees are not refundable. The extra shipping costs are non-refundable once the package has been shipped. You are responsible for paying these fees and we’re unable to waive or refund them, even if the order is returned back to us.Once we received and confirmed your returned item, we will send you an email to notify you that we have received your returned item. We will also notify you of the approval or rejection of your refund.If you have any problems regarding the refund process, please contact us. service@roymall.com or Whatsapp: +447549870296
Specifications:

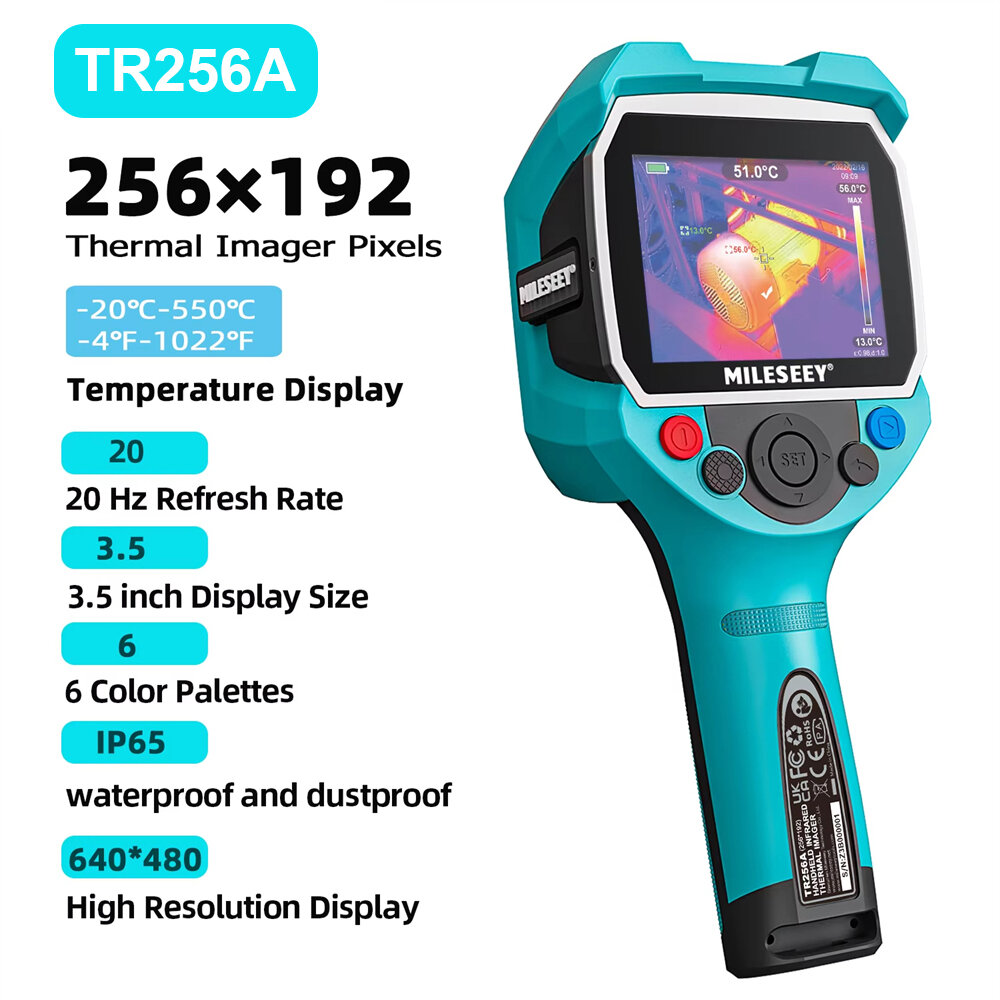

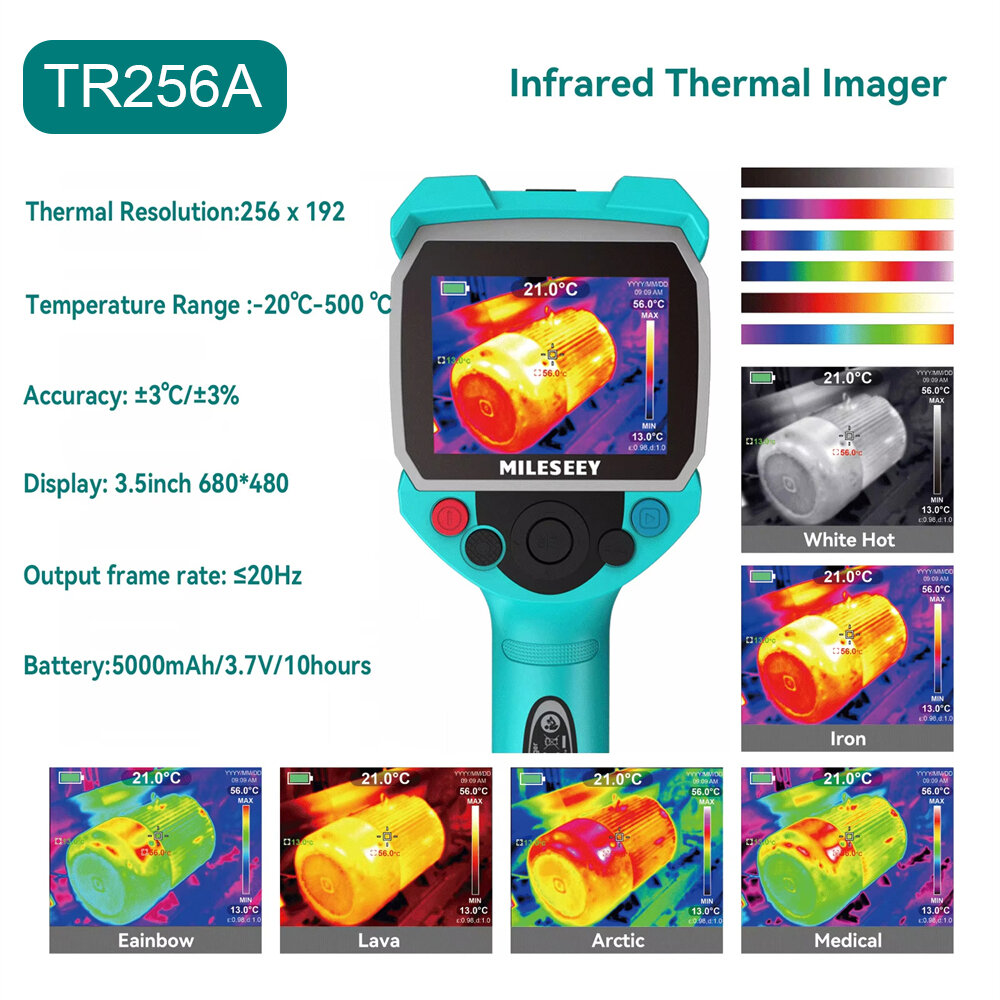

MiLESEEY TR256A:
Display Size: 3.5 inch
Display Resolution: 640 x 480
Thermal Imaging Pixel: 256 x 192
Display Modes: Thermal image
Laser Distance: Not supported
GPS: Not supported
Wi-Fi: Not supported
Digital Camera: Not supported
Visual Resolution: Not available
High & Low Temperature Alarm: Supported
Video Output: Supported
Spectral Response Band: 8~14u00b5m
Pixel Size: 12u00b5m
Thermal Sensitivity: u226450mK
Measuring Range: -20u00b0C ~ 550u00b0C
Palette: Six color palettes
Field of View (FOV): 56u00b0 x 42u00b0
Power Supply: 5000mAh/3.7V
Communication Interface: USB 2.0 (HS)*480M
LED Lighting: High-power white LED
IP Level: IP65
Working Temperature: 0u00b0C ~ 35u00b0C
Storage Temperature: -40u00b0C ~ 70u00b0C
Fall Prevention: 1.5m
Dimensions: 238 u00d7 95 u00d7 95mm
Weight: 540g
ufeff

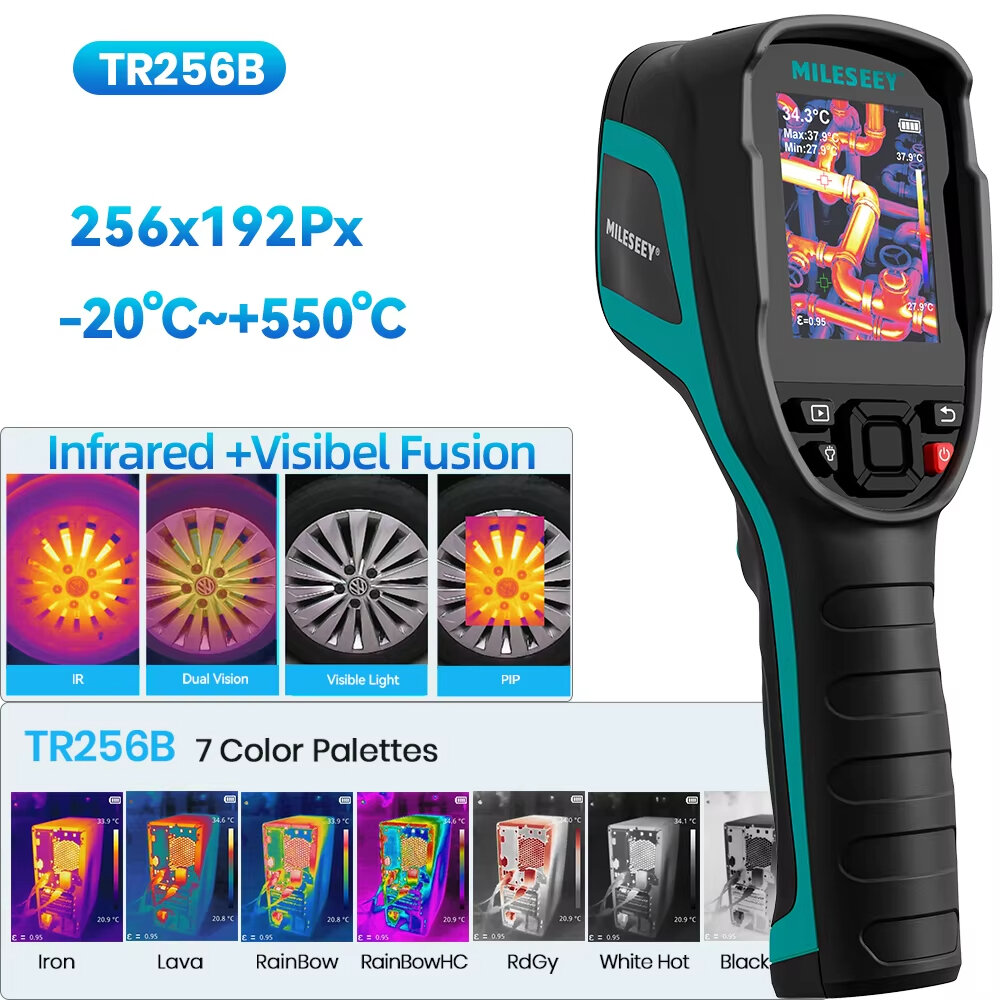

MiLESEEY TR256B:
Display Size: 2.8 inch
Display Resolution: 320 x 240
Thermal Imaging Pixel: 256 x 192

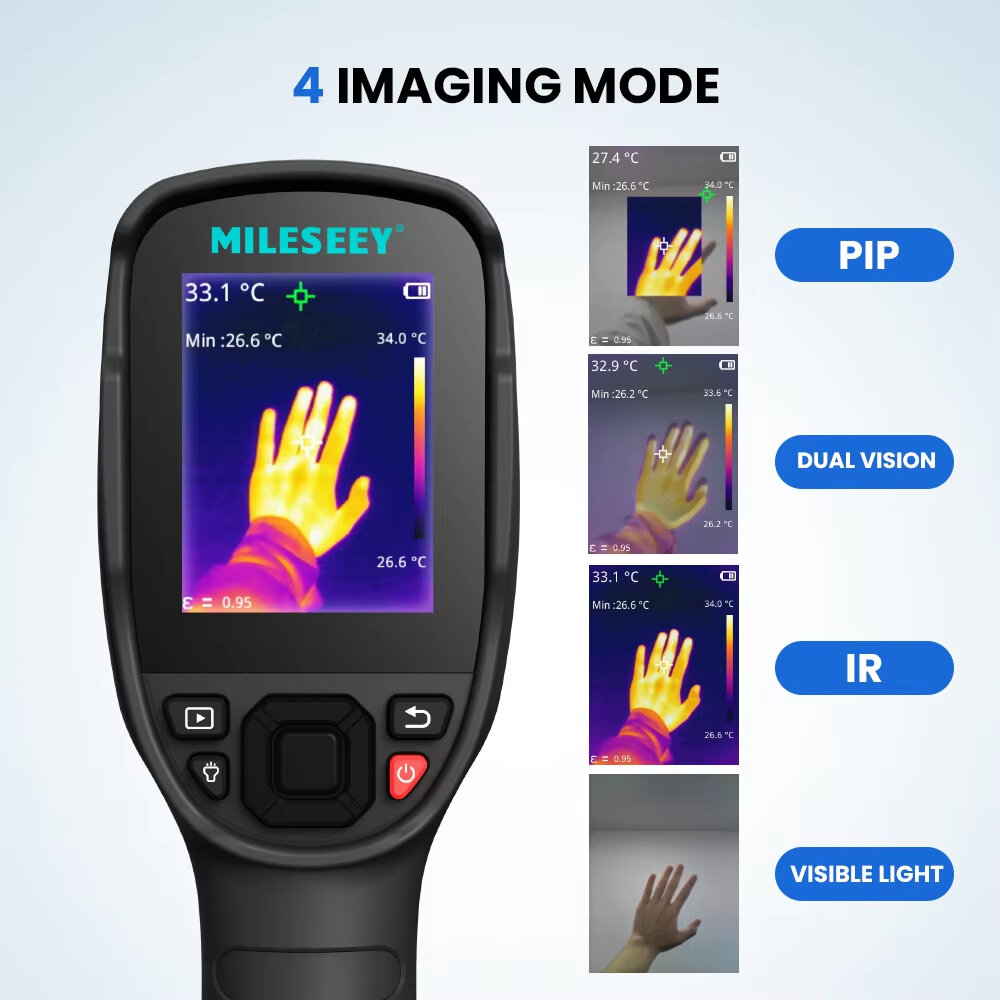

Display Modes: Thermal image, Fuse, PIP (Picture-in-Picture), Visible, Alignment
Laser Distance: Not supported
GPS: Not supported
Wi-Fi: Not supported
Digital Camera: Supported
Visual Resolution: 200W
High & Low Temperature Alarm: Supported
Video Output: Not supported
Spectral Response Band: 8~14u00b5m
Pixel Size: 12u00b5m
Thermal Sensitivity: 40mK
Measuring Range: -20u00b0C ~ 550u00b0C
Palette: Seven color palettes
Field of View (FOV): 56u00b0 x 42u00b0
Power Supply: 5000mAh/3.7V
Communication Interface: USB 2.0 (HS)*480M
LED Lighting: Ordinary LED lamp
IP Level: IP54
Working Temperature: -10u00b0C ~ 50u00b0C
Storage Temperature: -20u00b0C ~ 60u00b0C
Fall Prevention: 2m
Dimensions: 237u00d774.4u00d7108mm
Weight: 520g
ufeff

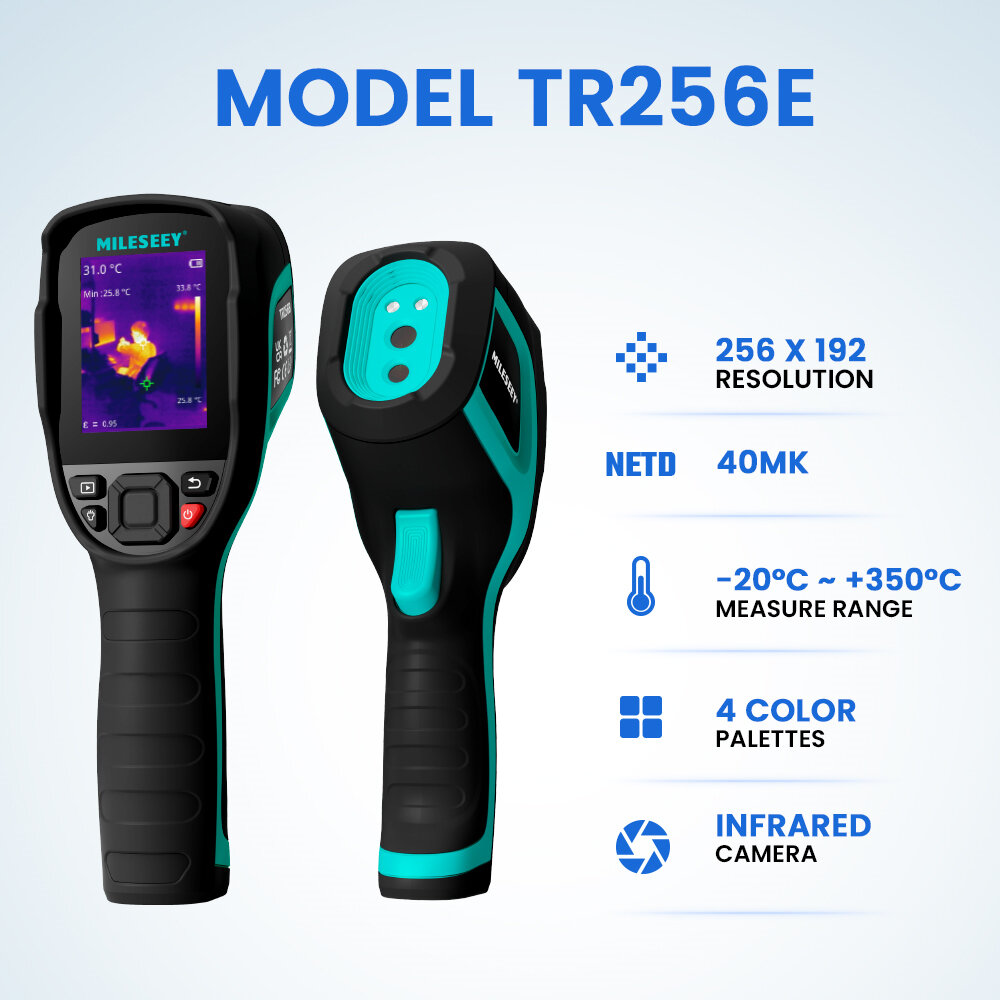

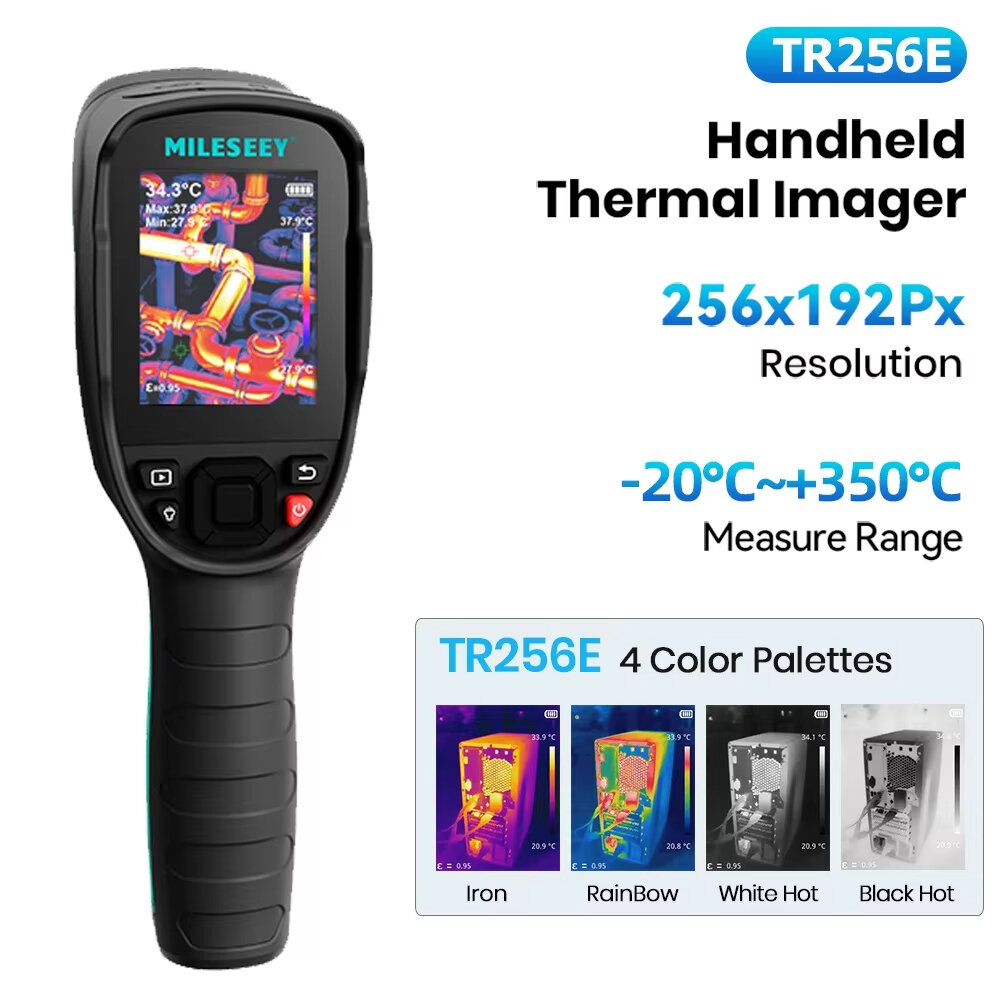

MiLESEEY TR256E:
Display Size: 2.8 inch
Display Resolution: 320 x 240
Thermal Imaging Pixel: 256 x 192
Display Modes: Thermal image
Laser Distance: Not supported
GPS: Not supported
Wi-Fi: Not supported
Digital Camera: Not supported
Visual Resolution: Not available
High & Low Temperature Alarm: Supported
Video Output: Not supported
Spectral Response Band: 8~14u00b5m
Pixel Size: 12u00b5m
Thermal Sensitivity: 40mK
Measuring Range: -20u00b0C ~ 350u00b0C
Palette: Four color palettes
Field of View (FOV): 56u00b0 x 42u00b0
Power Supply: 5000mAh/3.7V
Communication Interface: USB 2.0 (HS)*480M
LED Lighting: Ordinary LED lamp
IP Level: IP54
Working Temperature: -10u00b0C ~ 50u00b0C
Storage Temperature: -20u00b0C ~ 60u00b0C
Fall Prevention: 2m
Dimensions: 237u00d774.4u00d7108mm
Weight: 520g
ufeff
Features:
1.High Thermal Sensitivity for Detailed Detection:
With a thermal sensitivity of 40mK (TR256B and TR256E) or u226450mK (TR256A), our devices provide precise thermal imaging and detect subtle temperature variations, making them suitable for professional use.

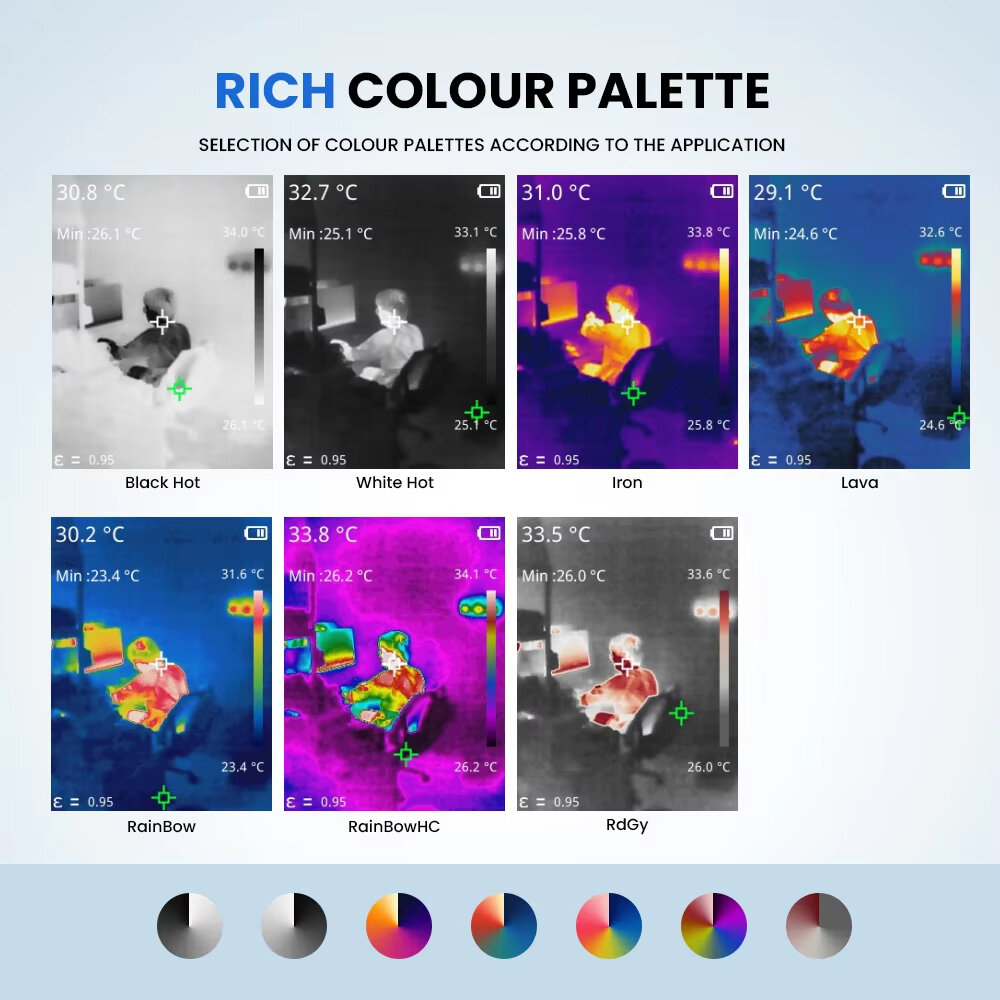

2.Multiple Color Palettes for Visualization:
The devices offer customizable palettes: Six palettes (TR256A), seven palettes (TR256B), and four palettes (TR256E), allowing users to adapt to different environments for optimal thermal viewing.

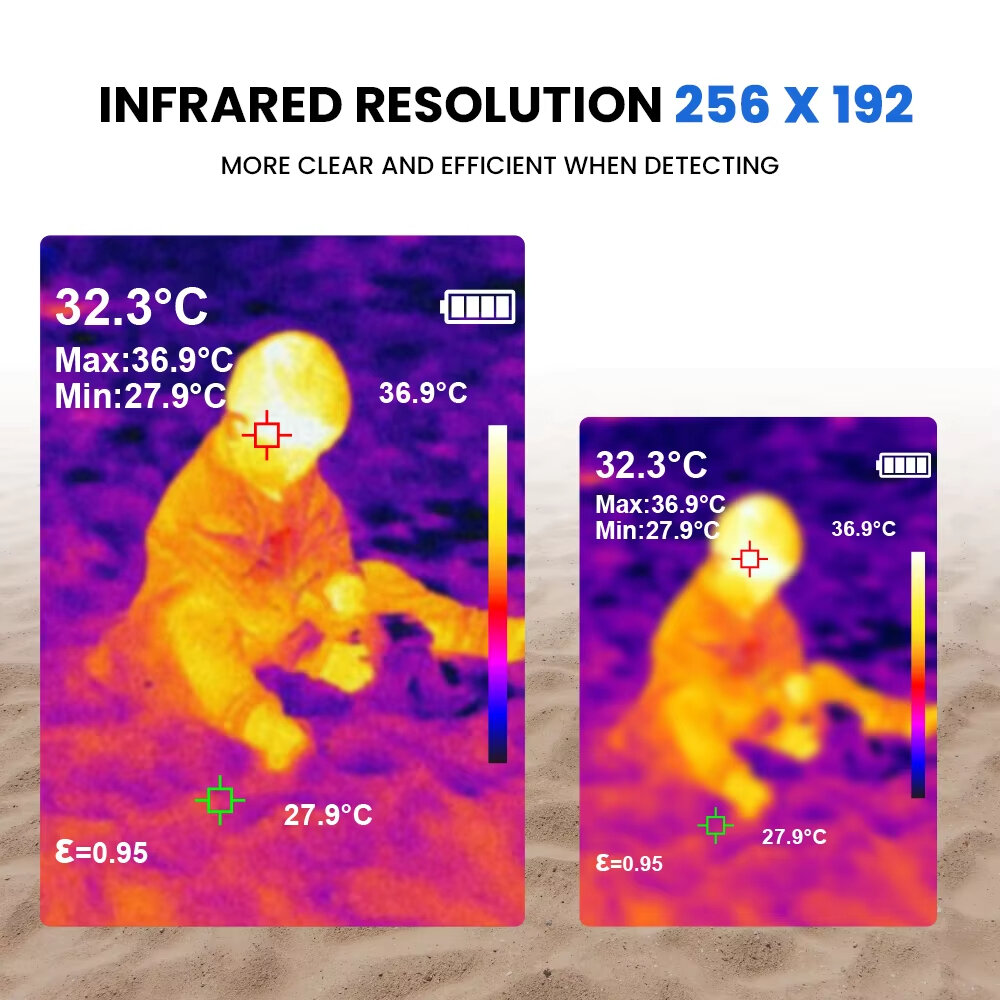

3.Enhanced Imaging Resolution:
Featuring up to 256 x 192 thermal pixels and display resolutions of either 640 x 480 (TR256A) or 320 x 240 (TR256B/E), the products ensure sharp imagery for clear identification of problem areas.
4.Stable Build with IP Protection:
The TR256 series includes IP65 protection (TR256A) or IP54 (TR256B/E), enabling the devices to withstand challenging conditions like dust and water exposure in industrial scenarios.

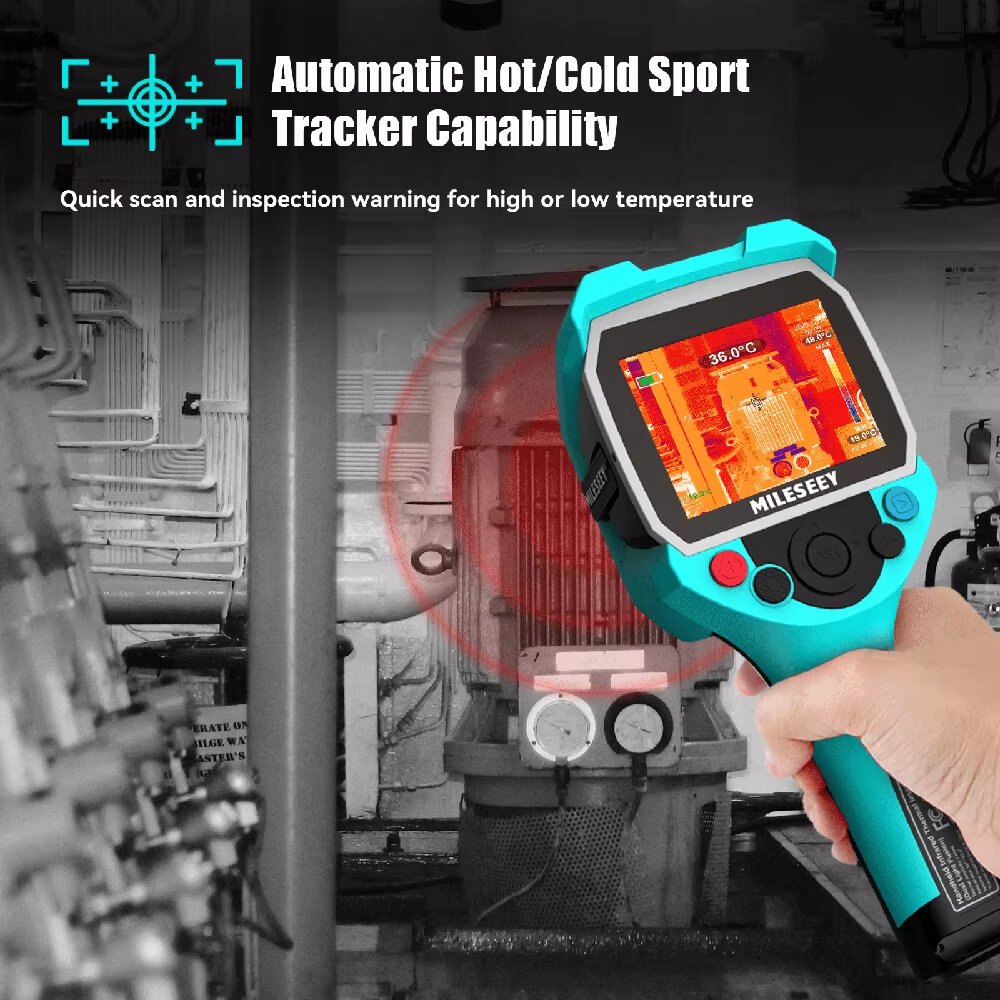

5.Advanced Functionality & Temperature Alarm:
Built-in high & low-temperature alarms across all models ensure timely alerts, providing practical applications in electrical inspection, HVAC diagnostics, or mechanical troubleshooting.
ufeff

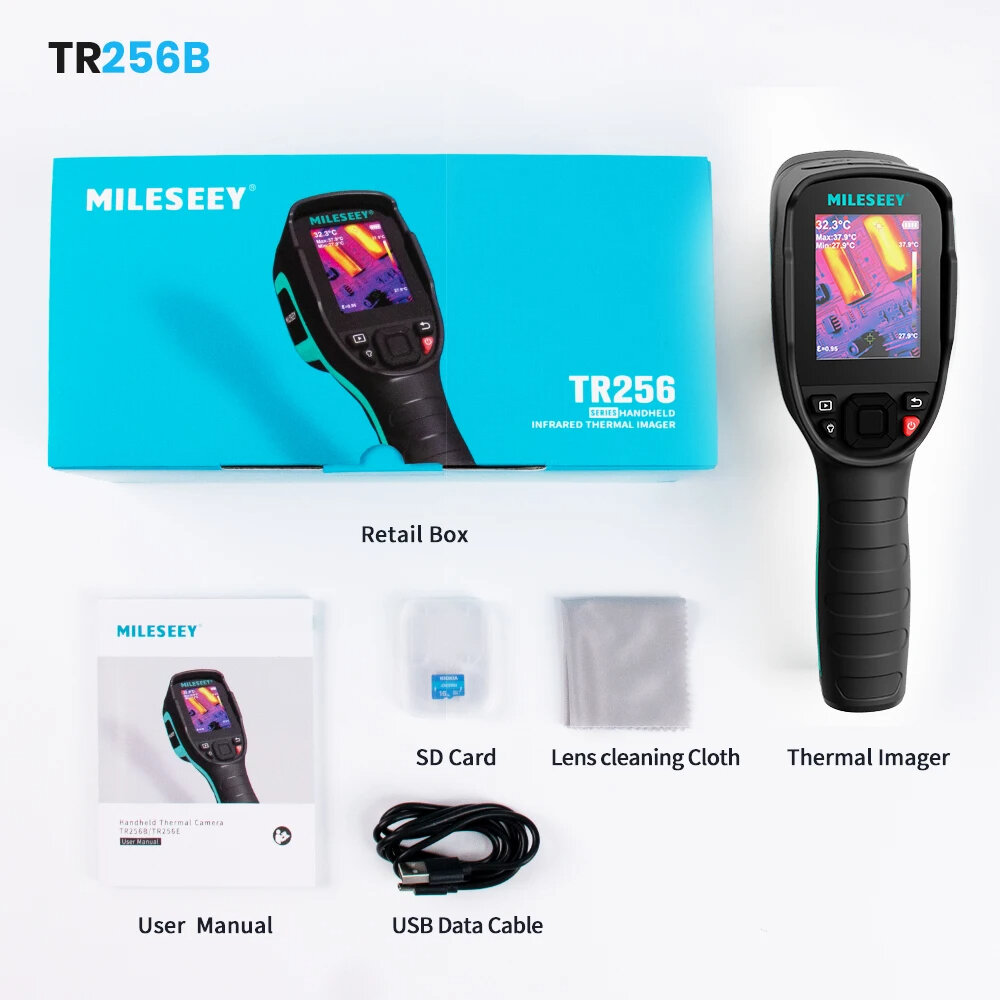

Package Included:
1 x Retail Box
1 xThermal Imager
1 x SD Card
1 x Lens Cleaning Cloth
1 x USB Data Cable
1x User Manual
