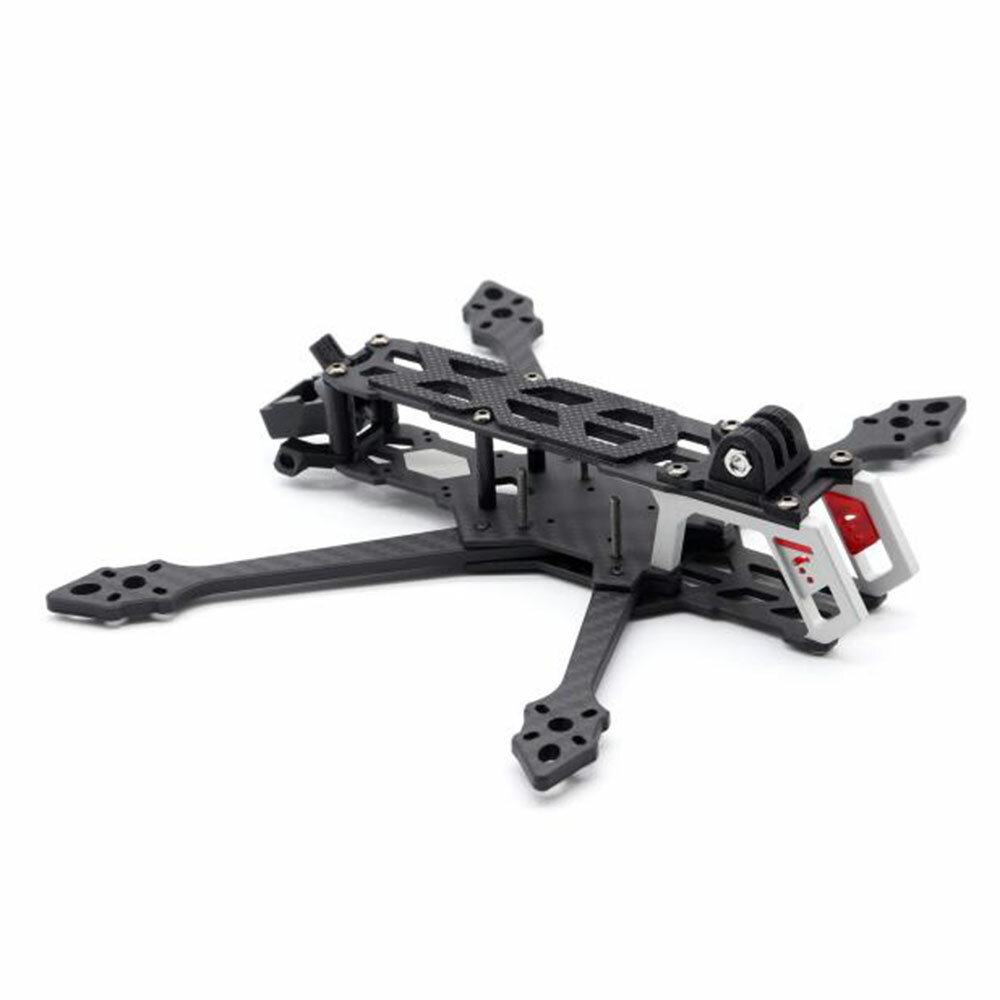

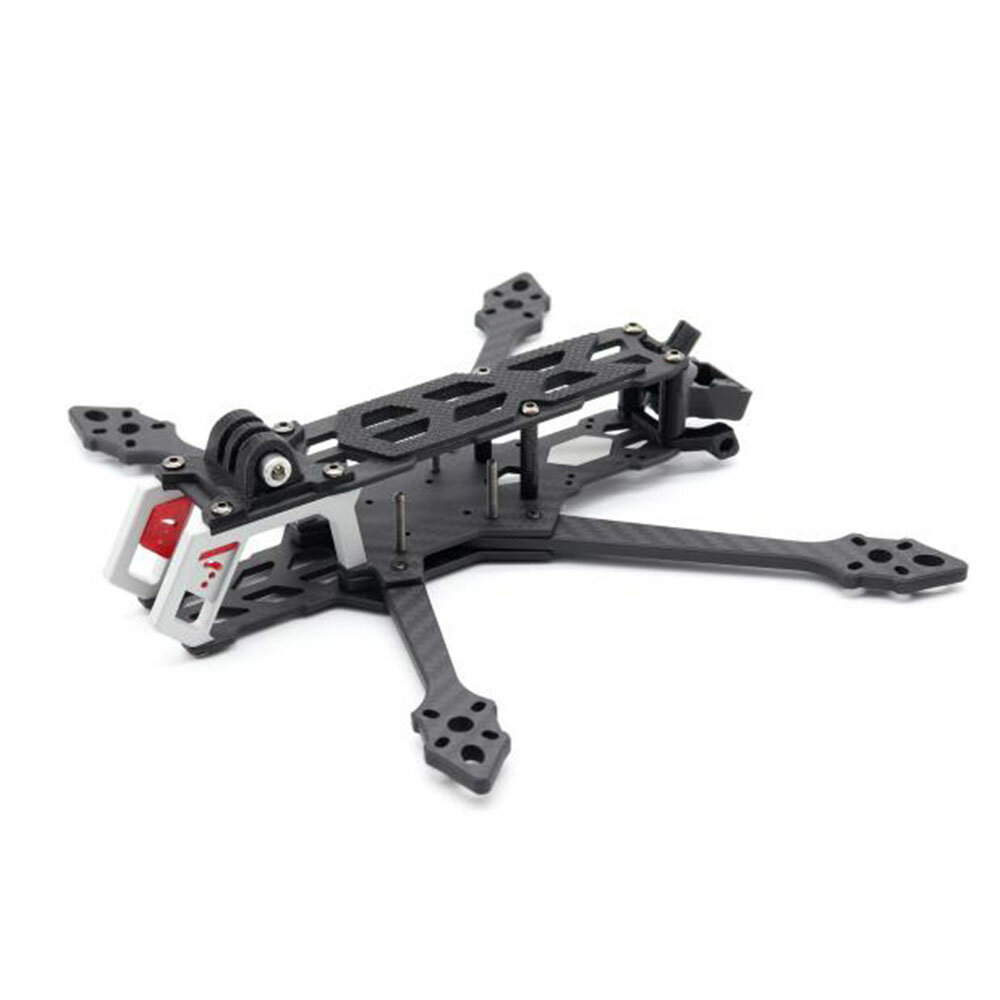

LHCXRC CLOUD 225 225mm Wheelbase 5mm Arm Carbon Fiber 5 Inch DIY Frame Kit Support DJI O3 Air Unit for RC Drone FPV Racing
33
Shipping to: United States |
Express delivery: 7-12 business days |
Standard delivery: 15-25 business days
Guaranteed Safe Checkout
Free Gift
Shipping Policy
Return PolicyFree Gift
Welcome to Roymall, your professional website for purchasing premium department store gifts. We highly value and appreciate your support, and we want to express our gratitude by adding an extra touch of excitement to your purchases. When you shop with us, you not only get to enjoy high-quality products that enhance your lifestyle, but you'll also receive an exclusive free gift with every order you place. Ready to explore our collection and find your perfect gifts? Browse our selection of premium department store items, place your order, and look forward to the excitement of your free gift arriving alongside your purchase.Shipping Policy
We will work hard to deliver items to you after receiving your orders and make sure they arrive safely. Delivery details will be provided in your confirmation email.In most cases, orders are processed within 2 days.Under special circumstances, it will be delayed as follows: When you place an order on Saturday, Sunday or public holidays, it will be delayed for 2 days..Normally, it needs 5-7 working days (Monday to Friday) without being affected by flight delay or other environmental factors..Because our shipping service is worldwide so the delivery times will depend on your location so it may need a few times and please wait patiently if you are in remote districts or countries.1. Return & Exchange Policy
We only accept items purchased from roymall.com. If you purchase from our local distributors or other retailers, you cannot return them on our side. Final sales items or free gifts are not acceptable for a return. To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging.After receiving return instructions from us, please package up your returned items and drop your package at the local post office or another courier.We will process your return or exchange item within 3-5 working days after we receive it. The refund will be processed and credited automatically to your original method of payment.No returns or exchanges can be accepted if the product was custom produced, including custom size, custom color, or custom printed.Need more help, please contact us. service@roymall.com or Whatsapp: +8619359849471
2.Refund Policy
You'll get a full refund or 100% store credit after we receive the returned package and check it. The refund will be processed and credited automatically to your original method of payment. Please note that shipping costs and any duties or fees are not refundable. The extra shipping costs are non-refundable once the package has been shipped. You are responsible for paying these fees and we’re unable to waive or refund them, even if the order is returned back to us.Once we received and confirmed your returned item, we will send you an email to notify you that we have received your returned item. We will also notify you of the approval or rejection of your refund.If you have any problems regarding the refund process, please contact us. service@roymall.com or Whatsapp: +8619359849471
Specification:
Model: CLOUD 225
Wheelbase size: 225mm
Top plate thickness: 2.5mm
Bottom plate thickness: 2.5mm
Arm thickness: 5mm
Flight control installation hole position: 20mm X 20mm /30.5mm x 30.5mm
Flight control installation height: 25mm
Video transmission installation hole position: 20mm X 20mm / 25.5mm x25.5mm
Motor mounting hole distance: 16mm X 16mm / 19mm X19mm
Camera installation size: 20mm X 20mm
Suitable blade size: 5 inch propeller blade
Dimensions: 275mm X 225mm X 40mm
Weight: 140g±5g (including 3D printing parts)
Features:
1.The wide X design of the arm makes the flying attitude stable and flexible, suitable for flexible flower flying shooting.
2.The quick-release design of the machine arm is convenient for replacement.
3.16mm x16mm and 19mm x 19mm motor holes can be installed.
4. With a camera mounting base, for installing GoPro Hero 8 Naked Camera and INSTA 360 GO 2 cameras.
5. Specially designed with CNC aluminum alloy heat sink for DJI O3 Air Unit
6. The 7075 aluminum alloy CNC side plate can be perfectly adapted to the new high-definition digital image transmission lens of DJI O3 air unit.
Recommended Parts (not included)
Brushless Motor: 2207 / 2306
Flight Controller: F4 / F7
Lipo Battery: 6S 1300mah/1500mah
Propeller: 5136 / 5226
The following Parts are Compatible: ( Not included)
FC ESC Stack: 20x20mm iFlight BLITZ Mini F7 FC & BLITZ Mini E55 4in1 ESC BL_32
MAMBASYS F405 MK2 Betaflight Flight Controller F40 40A 3-6S ESC
Motor: iFlight XING-E Pro 2207 2207 1800KV 3-6S Brushless Motor
IFlight XING2 2306 1755KV 6S Brushless Motor
Propeller: Gemfan Freestyle4 5136 5.1x3.6x3 5.1 Inch 3-Blade Propeller
Gemfan Freestyle 5226 5.2x2.6 5.2 Inch 3-Blade Propeller
Lipo Battery: ZOP Power 22.2V 1300mAh 100C 6S LiPo Battery XT60 Plug
Product List:
1 x upper plate 2.5mm
1 x Front Bottom 2.5mm
1 x Back Plate 2.5mm
2 x Front arms 5.0mm
2 x rear arms 5.0mm
4 x Textured aluminum column M3x25
12 x round M3x6 screws
4x round head M3x9 screws
4x round head M3x11 screws
4 x Round Head M3x14 Screws
4 x round head M3x28 screws
4 x M1.6x8 screws (for dji O3 air unit mounting screws)
4 x Nylon Hex Nuts M3x3
8 x rivet nuts M3 (already pressed)
2 x CNC Front Aluminum Parts
1 x CNC aluminum video transmission heat sink
1 x camera vibration reduction 3D print left
1 x camera vibration reduction 3D print right
1 x Video Transmission Antenna Installation 3D Printing
1x GPS mount 3D print
1x receiver T-antenna mount 3D print
1 x 3D print camera Mounting Base
1 x battery rolling strip
1 x Anti-slip mat for battery
4x Arm EVA Foot Pads
1x Product Installation Manual
