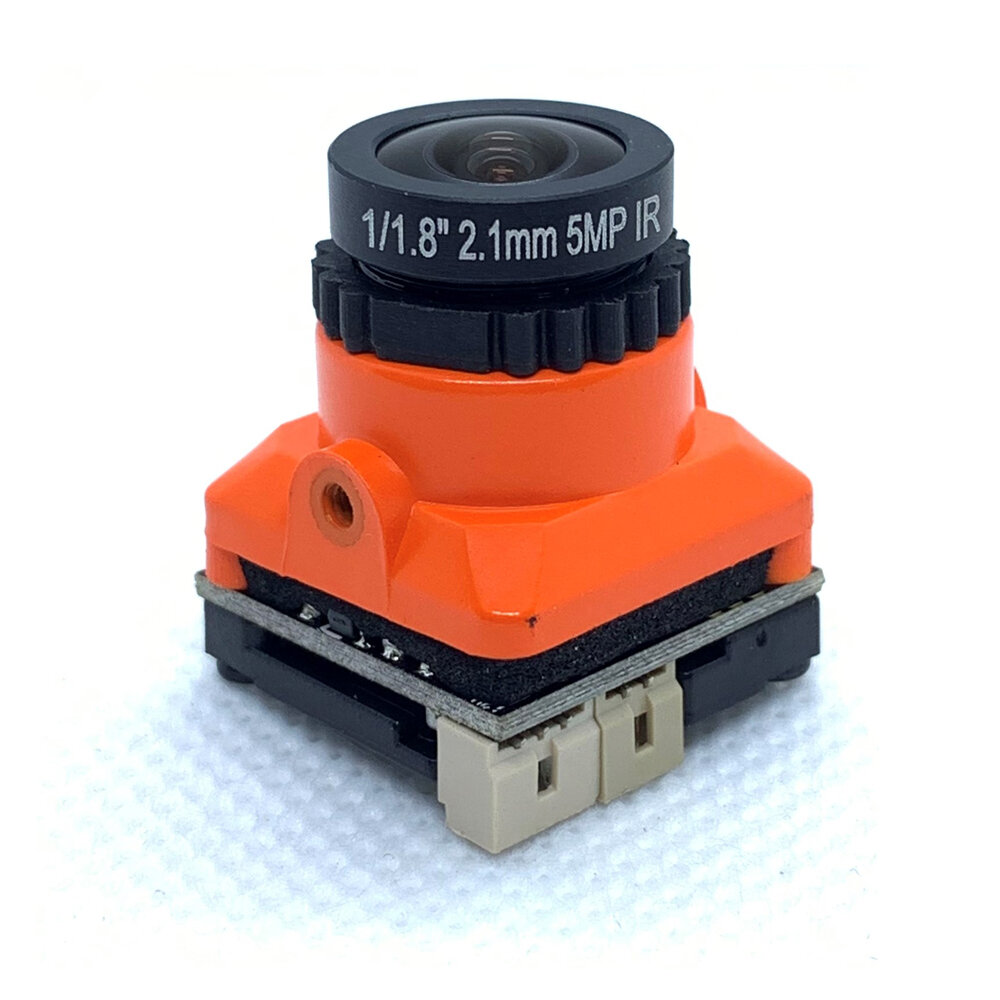

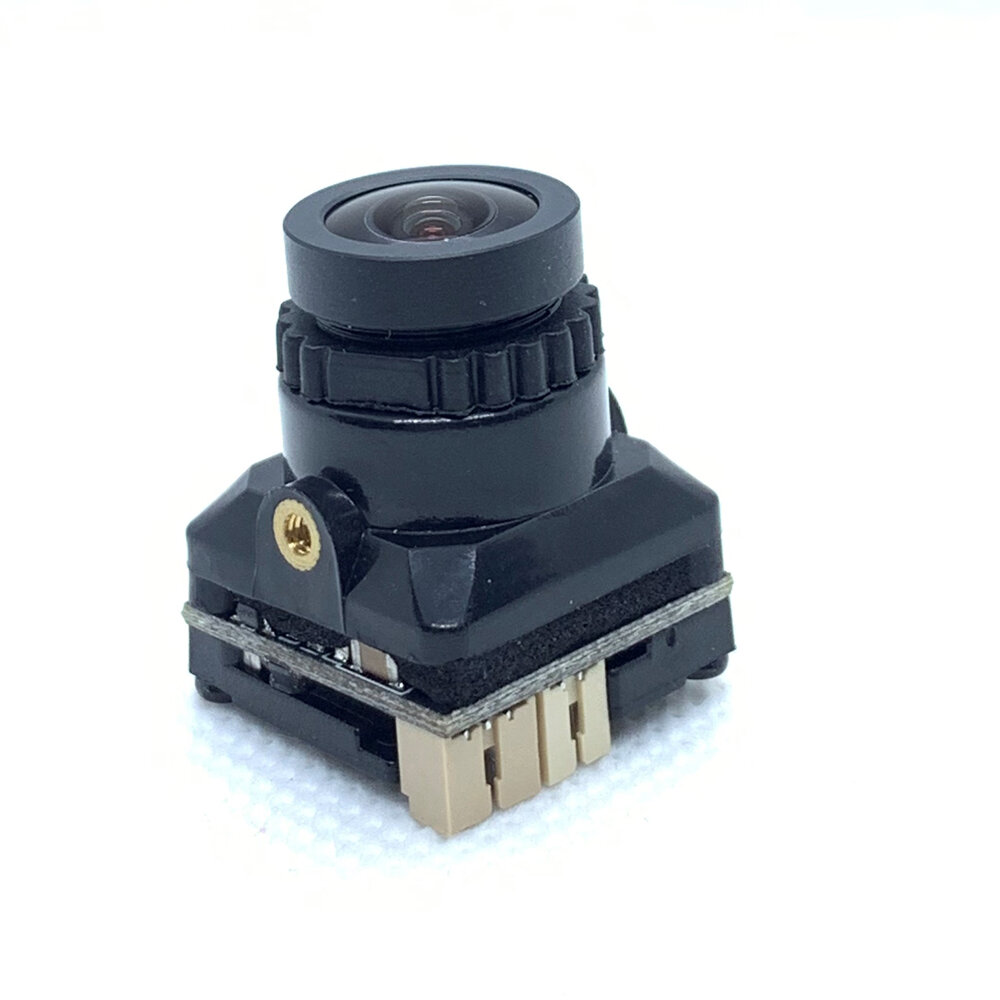

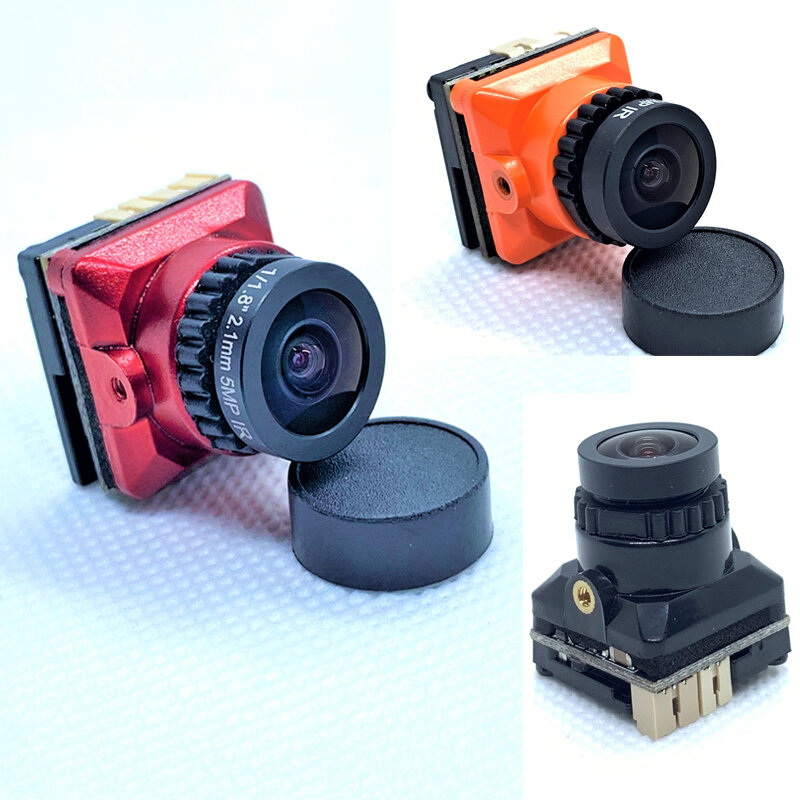

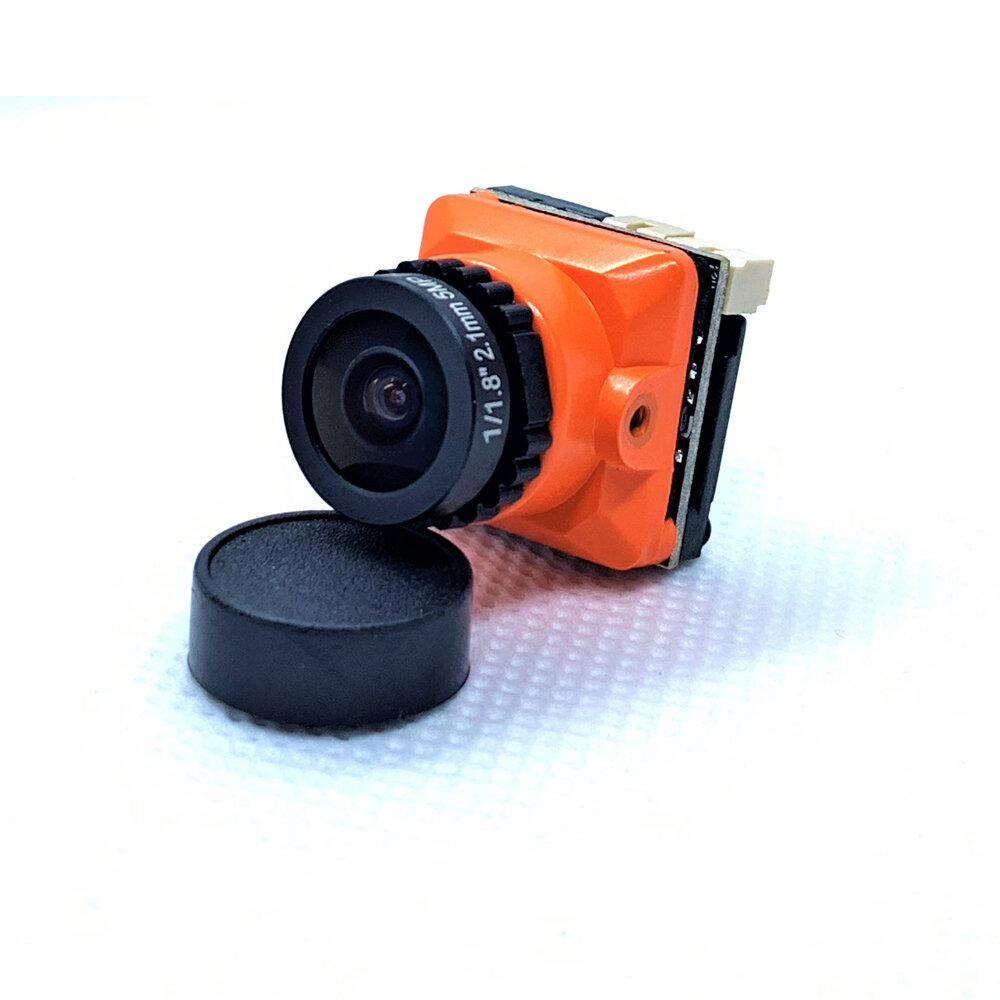

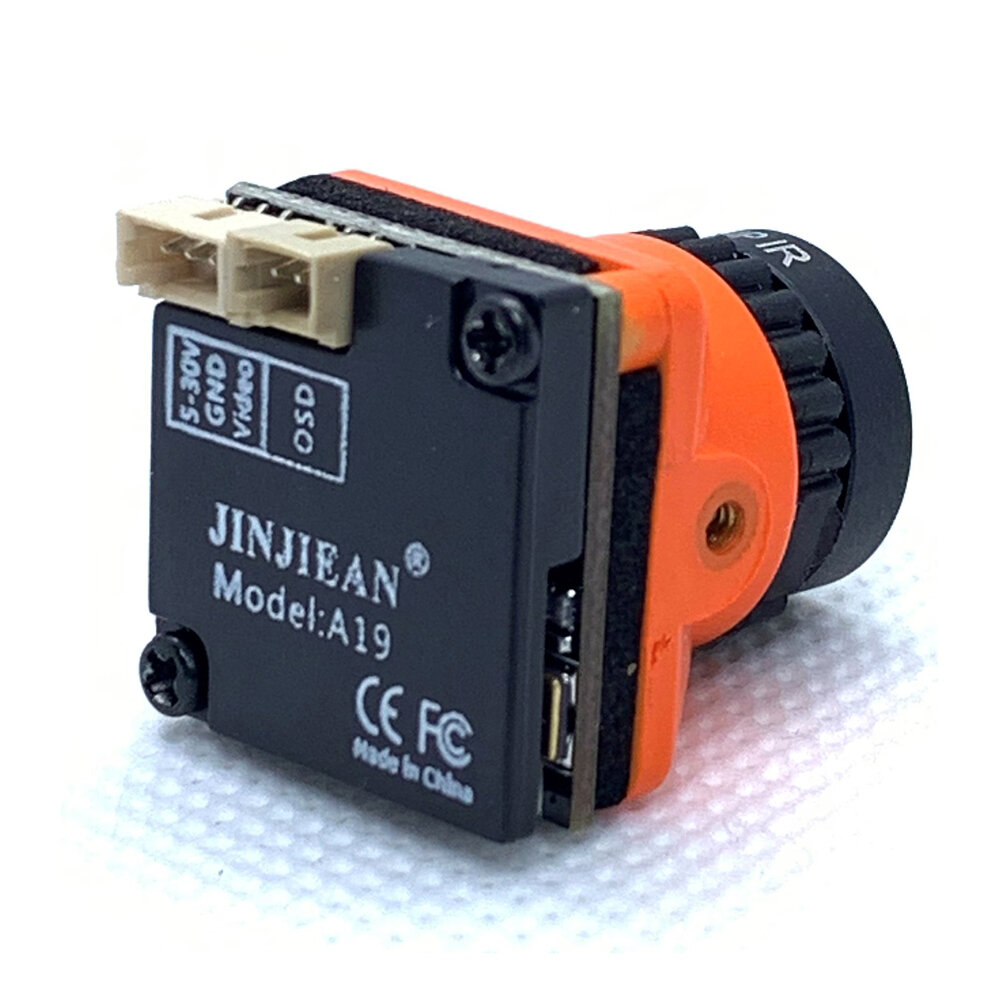

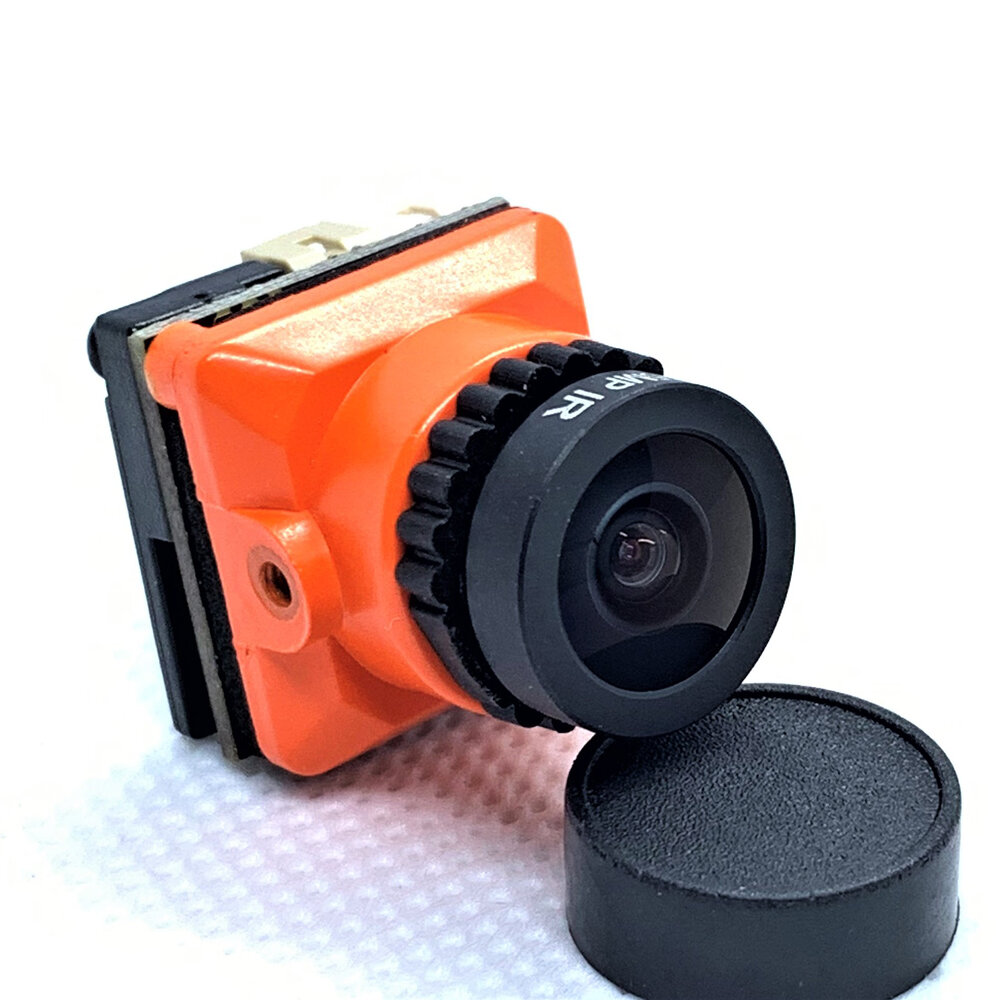

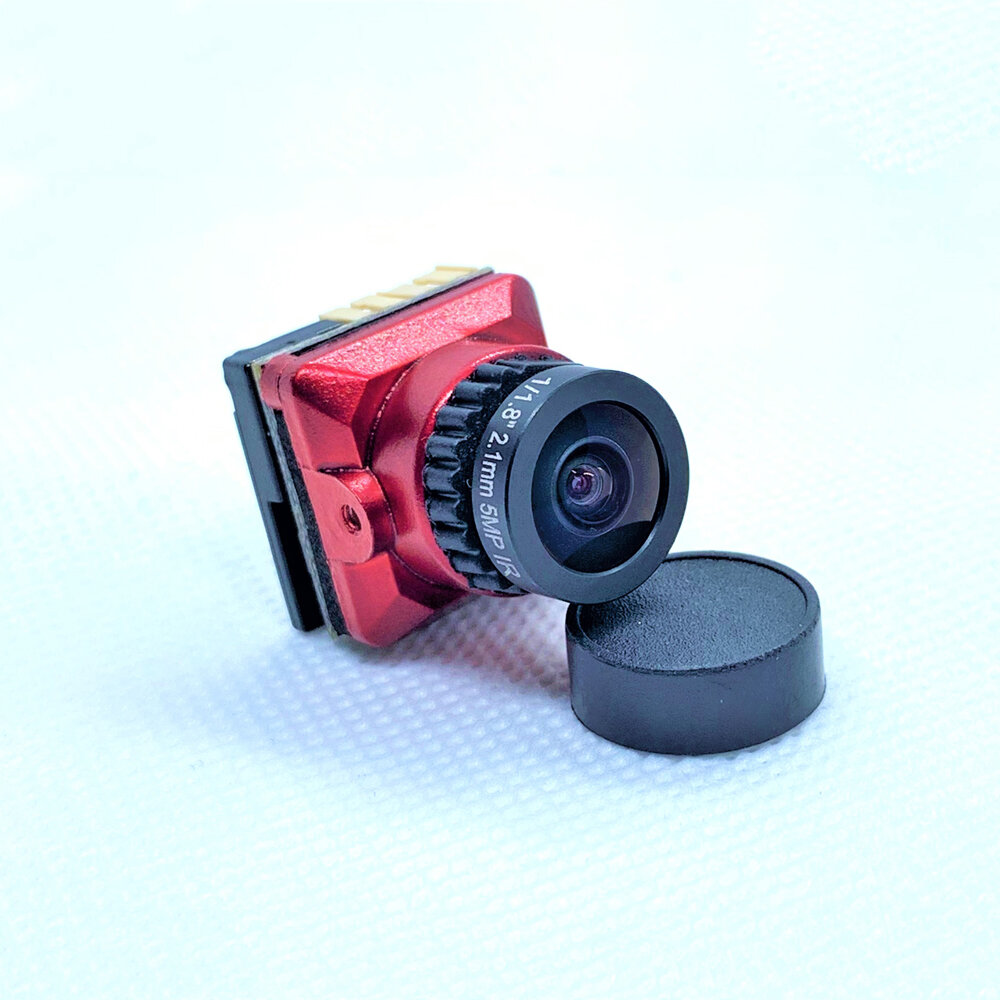

JJA B19 1500TVL 1/3 CMOS 2.1mm Lens Mini FPV Camera With OSD Configuration Board PAL/NTSC for RC Drone

4.952
$29.99 /$36.59
  • Direct purchase from the factory

    • *Name:

    • *Email:

    • *Phone:

    • *Quantity:

    • *Content:

    • Attachment:

      Supports JPG, JPEG, PNG, PDF, EXCEL, WORD, RAR, ZIP, 7z formats

    $6.93 /$36.59
    -+
    Shipping to: United States | Express delivery: 7-12 business days | Standard delivery: 15-25 business days
    location

    Guaranteed Safe Checkout

    Free Gift
    Free gift with any purchase
    Shipping Policy
    Free standard shipping on orders over $9.9
    Return Policy
    Return items will be accepted within 40 days when is the date of receiving the goods. Customized items cannot be returned or exchanged. Items bought with an e-gift card are exchangeable only; refunds are not applicable.

    Free Gift

    Welcome to Roymall, your professional website for purchasing premium department store gifts. We highly value and appreciate your support, and we want to express our gratitude by adding an extra touch of excitement to your purchases. When you shop with us, you not only get to enjoy high-quality products that enhance your lifestyle, but you'll also receive an exclusive free gift with every order you place. Ready to explore our collection and find your perfect gifts? Browse our selection of premium department store items, place your order, and look forward to the excitement of your free gift arriving alongside your purchase.

    Shipping Policy

    We will work hard to deliver items to you after receiving your orders and make sure they arrive safely. Delivery details will be provided in your confirmation email.In most cases, orders are processed within 2 days.Under special circumstances, it will be delayed as follows: When you place an order on Saturday, Sunday or public holidays, it will be delayed for 2 days..Normally, it needs 5-7 working days (Monday to Friday) without being affected by flight delay or other environmental factors..Because our shipping service is worldwide so the delivery times will depend on your location so it may need a few times and please wait patiently if you are in remote districts or countries.

    1. Return & Exchange Policy

    We only accept items purchased from roymall.com. If you purchase from our local distributors or other retailers, you cannot return them on our side. Final sales items or free gifts are not acceptable for a return. To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging.After receiving return instructions from us, please package up your returned items and drop your package at the local post office or another courier.
    We will process your return or exchange item within 3-5 working days after we receive it. The refund will be processed and credited automatically to your original method of payment.No returns or exchanges can be accepted if the product was custom produced, including custom size, custom color, or custom printed.Need more help, please contact us. service@roymall.com or Whatsapp: +8619359849471

    2.Refund Policy

    You'll get a full refund or 100% store credit after we receive the returned package and check it. The refund will be processed and credited automatically to your original method of payment. Please note that shipping costs and any duties or fees are not refundable. The extra shipping costs are non-refundable once the package has been shipped. You are responsible for paying these fees and we’re unable to waive or refund them, even if the order is returned back to us.Once we received and confirmed your returned item, we will send you an email to notify you that we have received your returned item. We will also notify you of the approval or rejection of your refund.If you have any problems regarding the refund process, please contact us. service@roymall.com or Whatsapp: +8619359849471
    Description:Brand: JJAModel: MINI B19Image Sensor: 1/3" CMOS
    Horizotal Resoulution: 1500TVL
    Lens: 2.1mm
    Signal System: PAL/NTSC (OSD Internal adjustable)
    S/N Ratio: >60Db(AGC OFF)
    Electronic Shutter Speed: PAL: 1/50-100.000, NTSC:1/60-100,000
    Auto Gain Control(AGC): LOW/MIDDLE/HIGH
    Back light compensation(BLC): YES
    Min lllumination: 0.001Lux/1.2F
    WDR: D-WDR
    DNR: 3DNR
    Day/Night: Auto/Color/B*W
    Power: DC 5V-30VColor: Red, Orange, Black (Optional)
    Net weight: 6.g
    Dimensions: 19mm*19mm*19mm
    OSD
    exposure: Brightness/exposure mode/gain
    The white balance: Automatic tracking white balance
    Day and night mode: Internal automatic/color mode/black and white mode
    Video Settings: Contrast/sharpness/saturation/digital noise/video format (N/P)/digital wide dynami.
    language: Chinese/English/German/Italian/Russian
    Restor the factory Settings: OK
    Save the exit: OK
    Package Included:
    1x JJA MINI B19 FPV Camera
    u200a1x OSD Control Board
    Buy with Paypal
    Products related to this item
    Loading related products...
    ❮
    ❯
    Videos for similar product
    Loading product videos...
    ❮
    ❯
    Toys Hobbies & Robot Ranking
    More Toys Hobbies & Robot

    JJA B19 1500TVL 1/3 CMOS 2.1mm Lens Mini FPV Camera With OSD Configuration Board PAL/NTSC for RC Drone

    JJA B19 1500TVL 1/3 CMOS 2.1mm Lens Mini FPV Camera With OSD Configuration Board PAL/NTSC for RC Drone

    JJA B19 1500TVL 1/3 CMOS 2.1mm Lens Mini FPV Camera With OSD Configuration Board PAL/NTSC for RC Drone

    JJA B19 1500TVL 1/3 CMOS 2.1mm Lens Mini FPV Camera With OSD Configuration Board PAL/NTSC for RC Drone

    JJA B19 1500TVL 1/3 CMOS 2.1mm Lens Mini FPV Camera With OSD Configuration Board PAL/NTSC for RC Drone

    Customer Reviews

    4.90 out of 5
    See all 141 reviews
    Write a Review
    • All Reviews (141)
    • Image ( 2 )
    • Video (0)
    • All Star
      • All Star(141)
      • 5 Star (2)
      • 4 Star (0)
      • 3 Star (0)
      • 2 Star (0)
      • 1 Star (0)
    Sort by:
    Top Review
    • Top Review
    • Most Helpful
    • Most Recent
    Reviews only from your country (United States)
    |
    Show Original

    A part of the review has been auto-translated.

    • kondio VIP2
      BG
      18/03/2020

      Pretty good. Good image quality. Fast response. A lot of options in OSD menu. Alternatively can have CVBS, TVI, CVI and AHD output. Contrast, brightness, exposure, WDR and etc. Must play a lot with those options to configure it good. The only minus is a bit higher current consumption. The camera itself and some DVR parts get pretty hot with the working time, but no smoke. Maybe 60deg. So will be OK in long run.

      Comments (0)
      Show Original
    • virsli68 VIP4
      HU
      22/08/2021

      very good fpv camera!!!!!!
      nagyon olcsón jóminöség!!Érdemes megvàsàrolni!

      Comments (2)
      Show Original
    Show:
      12...30

      Total 0 pages

      Go to page

      Go
      Customer Q&As
      Searching for relevant results...
      Can't find your answer? Ask a new questionorCustomer Service

      Tips:For questions about your order, place of delivery, product discount, taxation, delivery time, warranty, shipping, payment, exchange rate, and other questions unrelated to the product, please contact customer service.

      showing 1-21 of 21 |
      Show Original

      A part of the QA has been auto-translated.

      • 0
        Q: Does the OSD display battery voltage?
        A:
        yes.
        Answered by Z_itriix on 06/01/2020Helpful (0)
      • 0
        Q: Did somebody know how to reset to factory settings this camera? Because I've changed something in OSD and after that there is no picture at all, don't know how to make it work again? Maybe it has nothing to do with OSD, but not working at all :( power supply and fpv transmitter is working, there is picture with other camera. Please help somebody to make it work again, it was on just only for 5 minutes...
        A:
        Hi, i have find with another b19 : push on 1x (Time), push down 3x, push on 1x, push down 4x, push on 1x, push left 1x, push down 3x, push on 1x, push down 3x then push on 1x. disconnect and reconnect, if not fonction, restart this procédure, (3 x for me return to standard vidéo out).
        Answered by Daniel on 17/06/2020Helpful (0)
      • 0
        Q: Can I use with dvr?
        A:
        no.
        Answered by Alex3 on 19/08/2021Helpful (0)
      • 0
        Q: Could you please update the ad to specify that this is a 16:9 camera. I just received mine to use with 4:3 goggles, and it's no good. Also a very narrow FOV, even with the 2.1mm (1/1.8") lens. Maybe wrong lens chosen for this 1/3 sensor.
        A:
        Are you 100% certain your goggles don't have a 16:9 option somewhere in settings? Hope they do. If in doubt post asking if anyone knows of a way to find the option. Dude with the 'really' comment, maybe its obvious to you or maybe your kit is all 16:9, that's great, but why not just try help out someone who either doesn't have the kit or maybe doesn't know? It doesn't hurt you and you might just solve a problem that's second nature to you but others might struggle with, I hate to think how much I've wasted on incompatible kit due to just not being experienced or as knowledgeable as I wish I was, small stuff like 16:9 in the listing, or details on how to switch to 4:3 if possible might really help so I think the op does have a valid point, even if it may apply to a minority of buyers.
        Answered by BG502556513 on 27/05/2021Helpful (0)
      • 0
        Q: What is the safe input voltage of this camera? Thank you.
        A:
        5-30v
        Answered by GreenscOOps on 09/03/2022Helpful (0)
      • 0
        Q: What is the 3pin wire/plug size that connects the camera to the transmitter
        A:
        The camera uses a 3P JST-ZH 1.25mm terminal block, and the image transmission uses a 3P JST-SH 1.0mm terminal block.
        Answered by The seller on 15/01/2025Helpful (0)
      • 0
        Q: Does it come with everything you need to connect it to the drone stack?
        A:
        Yes
        Answered by guglielmon on 09/03/2024Helpful (0)
      • 0
        Q: does it have microphone
        A:
        No!
        Answered by virsli68 on 26/01/2022Helpful (0)
      • 0
        Q: Wiring diagram? Where do the raw wires go?!?!?
        A:
        they go to the vtx
        Answered by BG231044220 on 23/01/2022Helpful (0)
      • 0
        Q: How do you get to see the voltage on the screen? I am not using BF and I dont see an option in the osd menu to display voltage.
        A:
        Unfortunately, without using Betaflight I don't think that this is possible.
        Answered by Madav65 on 20/08/2021Helpful (0)
      • 0
        Q: How do you get this camera to display battery voltage using the camera OSD? Just wondering where the setting is so you can view the voltage going into the camera. Cheers
        A:
        it can't display voltage.
        Answered by bang on 22/08/2021Helpful (0)
      • 0
        Q: Which app is used for this camera ? Plz answer
        A:
        There is no app involved. It's an analog camera, not something like a wifi camera.
        Answered by tun0nl on 01/08/2021Helpful (0)
      • 0
        Q: Which app is used for this camera
        A:
        it doesn't have an app.
        Answered by CutieePie on 05/08/2021Helpful (0)
      • 0
        Q: Which app is used for this camera ?
        A:
        This cam ist build for Fpv. Its not for ans App Or being conectet by Wifi,
        Answered by Trick73 on 03/08/2021Helpful (0)
      • 0
        Q: Can I put it on y-series drone ?
        A:
        No answer yet.
      • 0
        Q: Is this fit to LR4 drone
        A:
        Yes, it fits.
        Answered by Pachy glossal on 02/06/2021Helpful (0)
      • 0
        Q: Is this fit to LR4
        A:
        yes.
        Answered by Kudos on 02/06/2021Helpful (0)
      • 0
        Q: Anyone know the size of the lense because I want to fit in a Tyro79.
        A:
        2.1mm lens.
        Answered by Midlenting on 06/08/2020Helpful (0)
      • 0
        Q: I changed the transfer mode in the camera osd and now have a black screen, and no osd shows up. Is there a way to switch it back or factory reset when I cant access the settings?
        A:
        I dont think there is a way to reset this manually without seeing what's on the osd screen to see what your doing. I had same problem twice j purchased that exact camera and same feedback I found out what you are saying
        Answered by BG443216394 on 23/11/2020Helpful (0)
      • 0
        Q: View angle?
        A:
        Hello, we have send your question to the supplier, we get back to you soon.
        Answered by Hemistich on 06/01/2020Helpful (0)
      • 0
        Q: 4:3 ratio?
        A:
        No. It's 16:9... I got one and it won't work for me... My new HDO2 have switchable ratio but I don't have my HT in it yet.
        Answered by EvanD on 14/02/2020Helpful (0)
