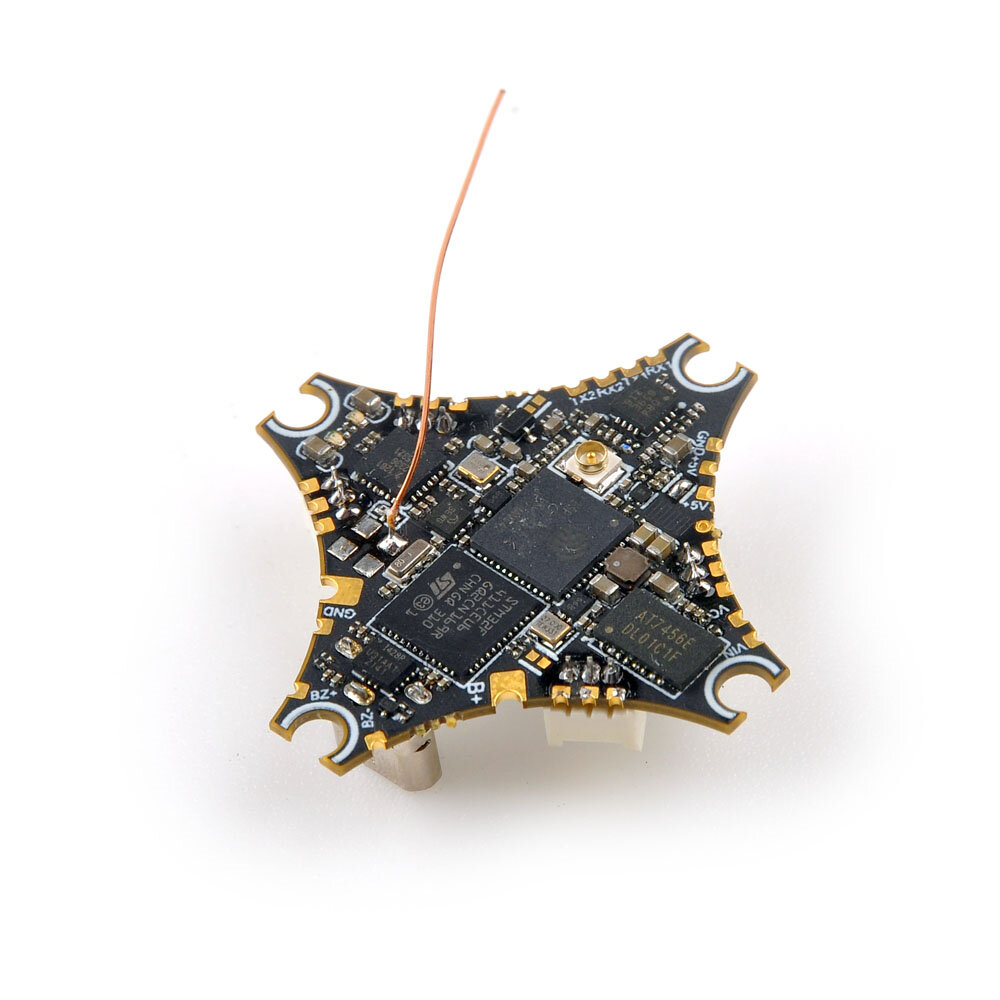

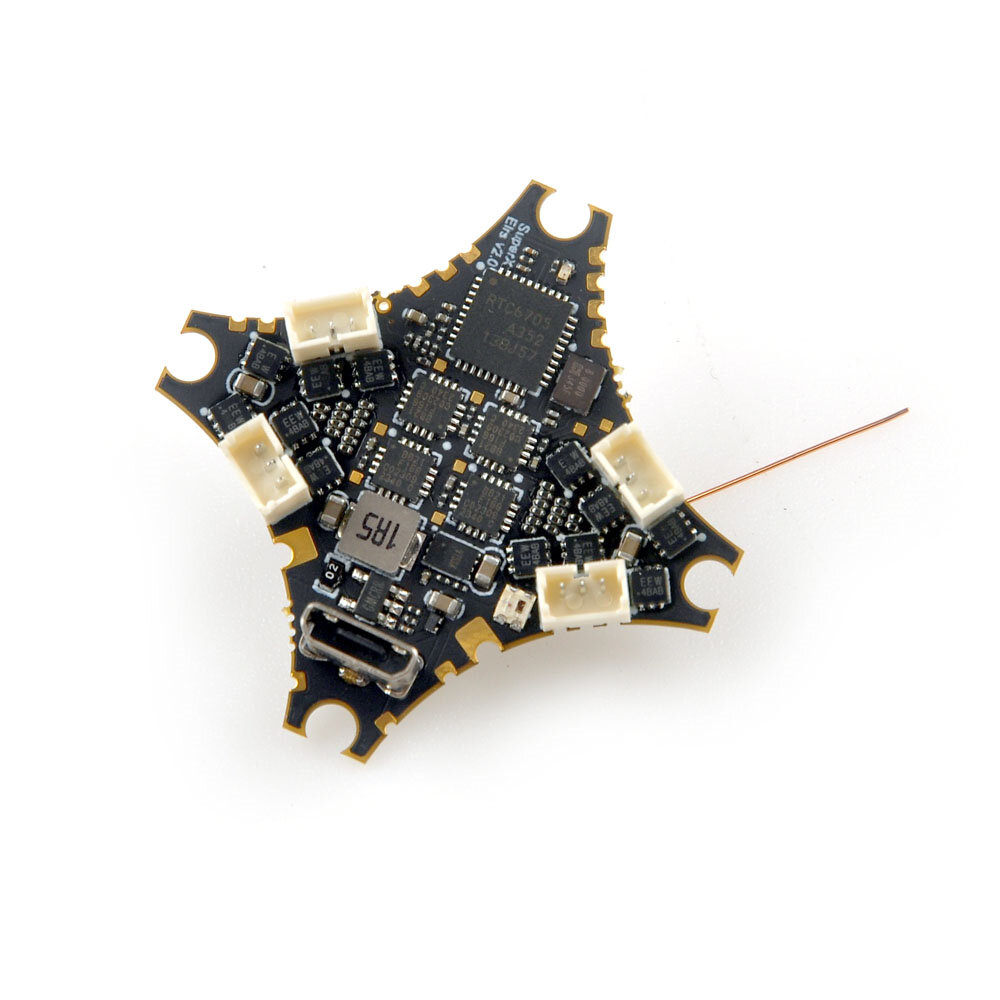

Happymodel SuperX ELRS V2.0 1S 5IN1 AIO Flight Controller Built-in 5A Blheli_S 4in1 ESC 5.8G OpenVTX for RC FPV Racing Drone

4.110
$99.99 /$121.99
  • *Name:

  • *Email:

  • *Phone:

  • *Quantity:

  • *Content:

  • Attachment:

    Supports JPG, JPEG, PNG, PDF, EXCEL, WORD, RAR, ZIP, 7z formats

$75.99 /$121.99
Shipping to: United States | Express delivery: 7-12 business days | Standard delivery: 15-25 business days

Guaranteed Safe Checkout

Free Gift
Free gift with any purchase
Shipping Policy
Free standard shipping on orders over $9.9
Return Policy
Return items will be accepted within 40 days when is the date of receiving the goods. Customized items cannot be returned or exchanged. Items bought with an e-gift card are exchangeable only; refunds are not applicable.

Free Gift

Welcome to Roymall, your professional website for purchasing premium department store gifts. We highly value and appreciate your support, and we want to express our gratitude by adding an extra touch of excitement to your purchases. When you shop with us, you not only get to enjoy high-quality products that enhance your lifestyle, but you'll also receive an exclusive free gift with every order you place. Ready to explore our collection and find your perfect gifts? Browse our selection of premium department store items, place your order, and look forward to the excitement of your free gift arriving alongside your purchase.

Shipping Policy

We will work hard to deliver items to you after receiving your orders and make sure they arrive safely. Delivery details will be provided in your confirmation email.In most cases, orders are processed within 2 days.Under special circumstances, it will be delayed as follows: When you place an order on Saturday, Sunday or public holidays, it will be delayed for 2 days..Normally, it needs 5-7 working days (Monday to Friday) without being affected by flight delay or other environmental factors..Because our shipping service is worldwide so the delivery times will depend on your location so it may need a few times and please wait patiently if you are in remote districts or countries.

1. Return & Exchange Policy

We only accept items purchased from roymall.com. If you purchase from our local distributors or other retailers, you cannot return them on our side. Final sales items or free gifts are not acceptable for a return. To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging.After receiving return instructions from us, please package up your returned items and drop your package at the local post office or another courier.
We will process your return or exchange item within 3-5 working days after we receive it. The refund will be processed and credited automatically to your original method of payment.No returns or exchanges can be accepted if the product was custom produced, including custom size, custom color, or custom printed.Need more help, please contact us. service@roymall.com or Whatsapp: +447549870296

2.Refund Policy

You'll get a full refund or 100% store credit after we receive the returned package and check it. The refund will be processed and credited automatically to your original method of payment. Please note that shipping costs and any duties or fees are not refundable. The extra shipping costs are non-refundable once the package has been shipped. You are responsible for paying these fees and we’re unable to waive or refund them, even if the order is returned back to us.Once we received and confirmed your returned item, we will send you an email to notify you that we have received your returned item. We will also notify you of the approval or rejection of your refund.If you have any problems regarding the refund process, please contact us. service@roymall.com or Whatsapp: +447549870296

Notes: 1. This AIO is upgraded to V2.0, which
comes with motor plug.

2. If you click save and reboot from u201cportu201d tab of betaflight configurator and found vtx device ready from video transmitter tab is u201cFalseu201d, please donu2019t worry ,just power cycle for the flight controller , the vtx device ready status would be u201ctrueu201d again.

Specification:

Brand: Happymodel

Model: SuperX ELRS V2.0 AIO


Flight controller

SuperX ELRS AIO 5-IN-1 Flight controller
MCU:STM32F411CEU6 (100MHZ, 512K FLASH) ,ESP32-PICO-D4
Sensor:BMI270(SPI connection)
Mount hole size: 25.5mm*25.5mm
Power supply: 1S battery input (DC 2.9V-4.35V)
Built-in 5A(each) Blheli_S 4in1 ESC
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G OpenVTX 0mw~400mw (MSP control)
Built-in UART ExpressLRS v3.0.0
Built-in voltage meter sensor , voltage meter scale 110
Built-in current meter sensor , current meter scale 1175


Onboard 4in1 ESC

Power supply: 1S LiPo/LiPo HV
Current: 5A continuous peak 6A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: Bluejay v0.19.2
Default protocol: DSHOT300
Recommend ESC Startup power value to min1100/max1200
Firmware target: O-H-5 48KHZ


Onboard Serial ExpressLRS
R
eceiver

Packet Rate option: 50Hz/150Hz/250Hz/500Hz
ExpressLRS Firmware version: V3.0
RF Frequency: 2.4GHz
Antenna : Enameled copper wire antenna
Telemetry output Power: <12dBm
Receiver protocol: Serial_based CRSF
Compatible with ExpressLRS V3.x.x TX Module
Could flash single ELRS receiver firmware by Wifi
ExpressLRS firmware target: ExpressLRS firmware target:
HappyModel AIO 2.4GHz RX+VTX (ExpressLRS web flasher)
Available from Expresslrs version 3.4.0 RC2


Onboard 5.8g VTX

Firmware version: OPENVTX
MSP VTX
PIT Mode support
Channels:40ch
Transmitting Power: 0/RCE/25mw/100mw/400mw
Power supply: DC 5V
Current (5v): <650ma (400mw)
Antenna connector: U.FL

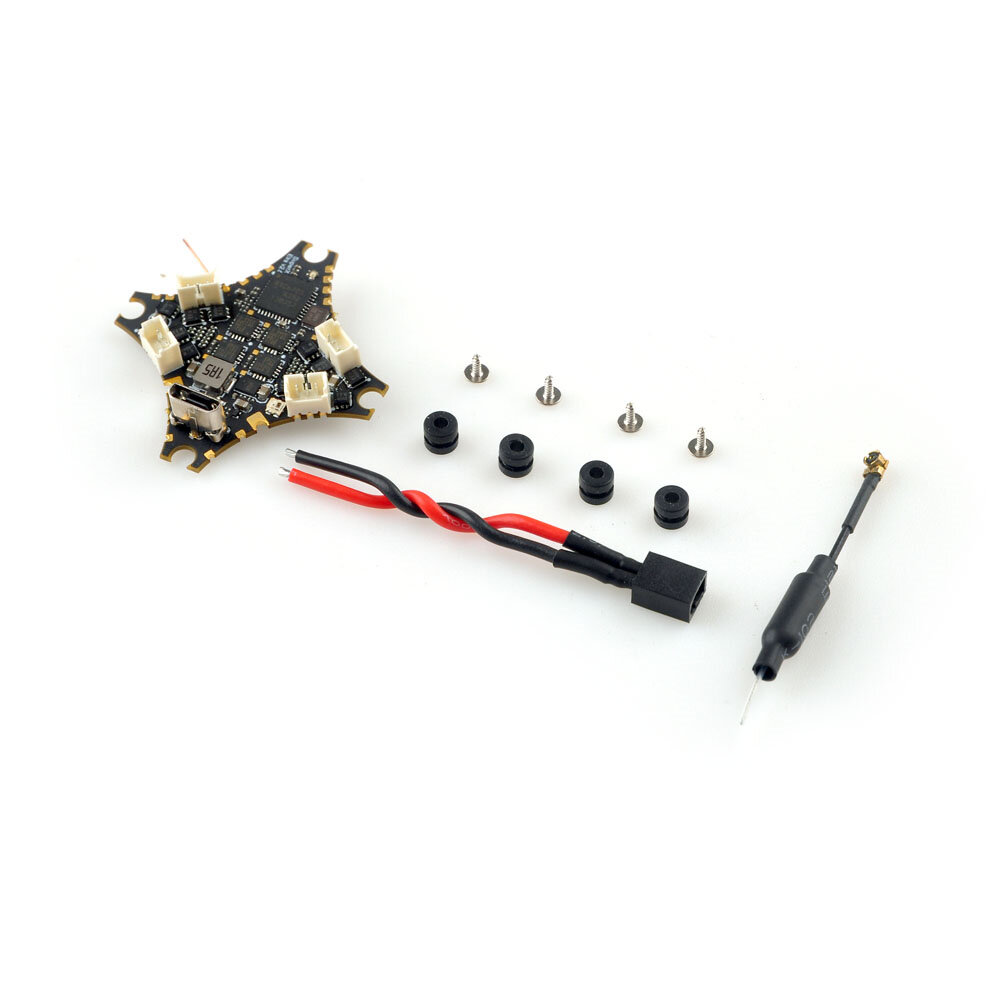

Package Included:

1 x SuperX ELRS V2.0 AIO




Happymodel SuperX ELRS V2.0 1S 5IN1 AIO Flight Controller Built-in 5A Blheli_S 4in1 ESC 5.8G OpenVTX for RC FPV Racing Drone

Happymodel SuperX ELRS V2.0 1S 5IN1 AIO Flight Controller Built-in 5A Blheli_S 4in1 ESC 5.8G OpenVTX for RC FPV Racing Drone

Happymodel SuperX ELRS V2.0 1S 5IN1 AIO Flight Controller Built-in 5A Blheli_S 4in1 ESC 5.8G OpenVTX for RC FPV Racing Drone

Happymodel SuperX ELRS V2.0 1S 5IN1 AIO Flight Controller Built-in 5A Blheli_S 4in1 ESC 5.8G OpenVTX for RC FPV Racing Drone

Happymodel SuperX ELRS V2.0 1S 5IN1 AIO Flight Controller Built-in 5A Blheli_S 4in1 ESC 5.8G OpenVTX for RC FPV Racing Drone

Happymodel SuperX ELRS V2.0 1S 5IN1 AIO Flight Controller Built-in 5A Blheli_S 4in1 ESC 5.8G OpenVTX for RC FPV Racing Drone
