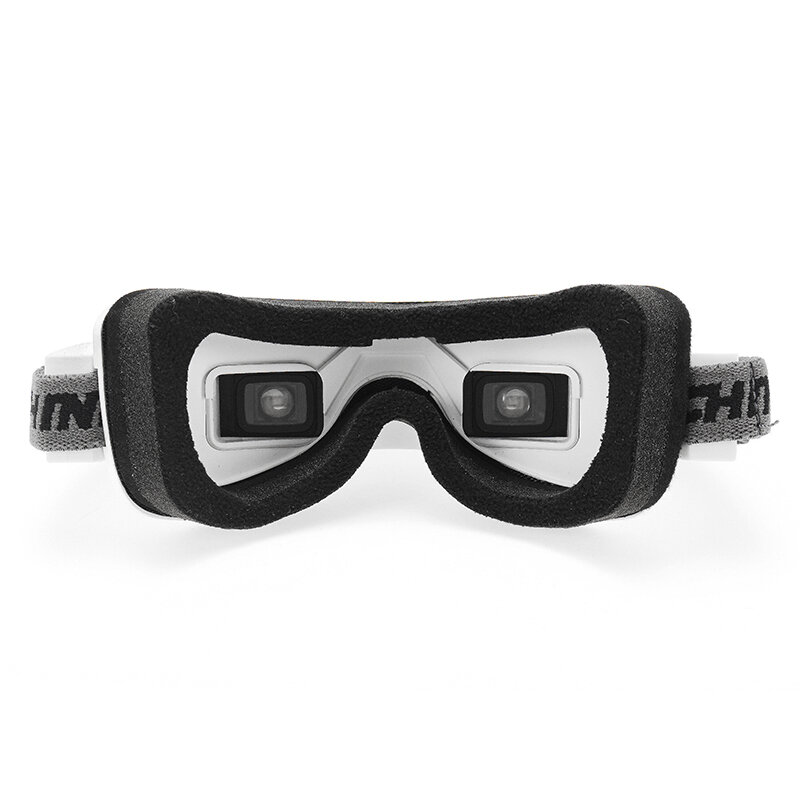

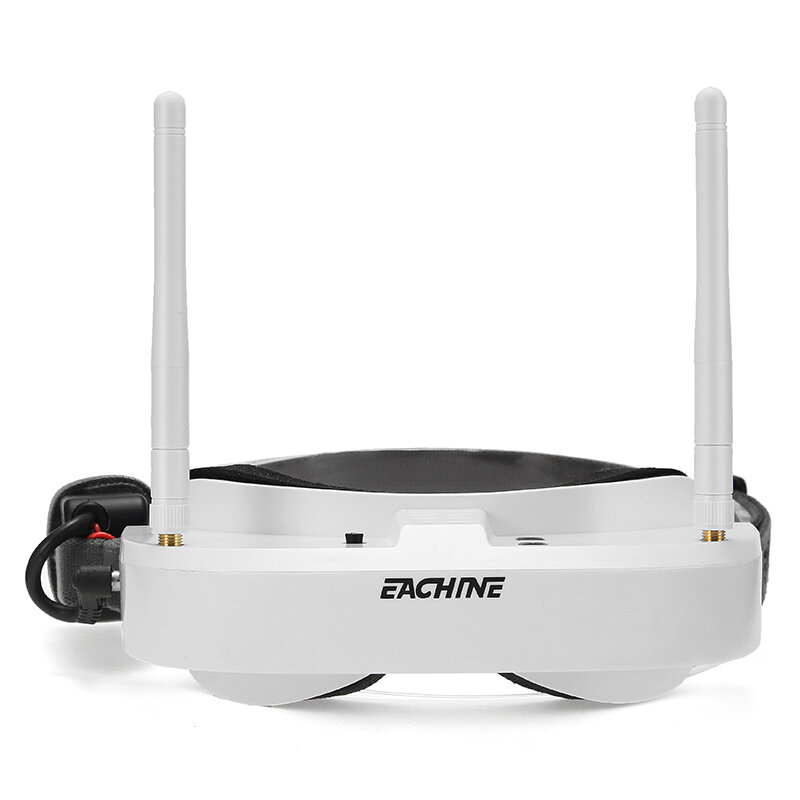

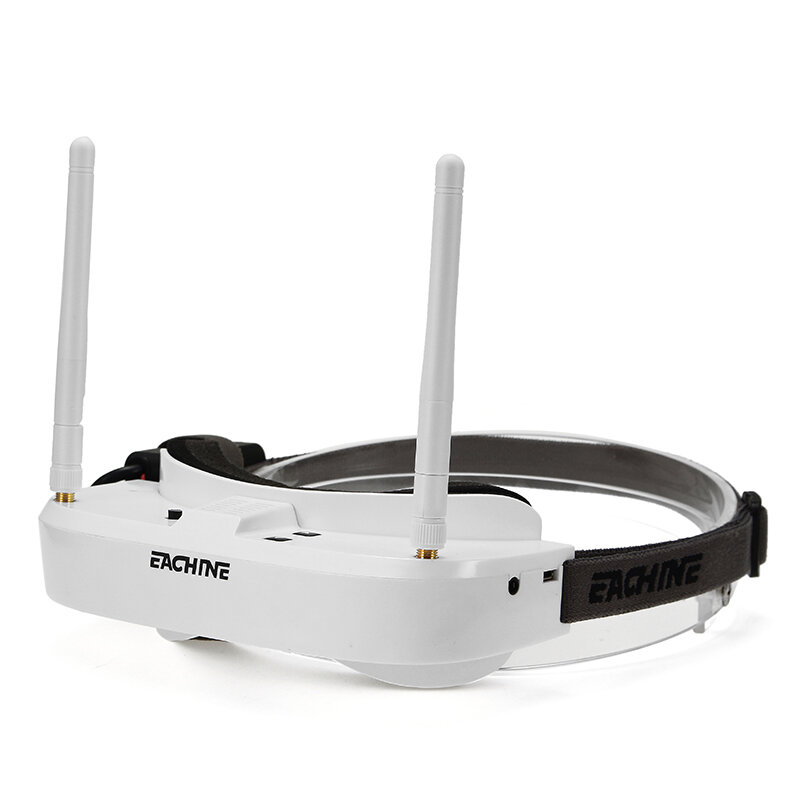

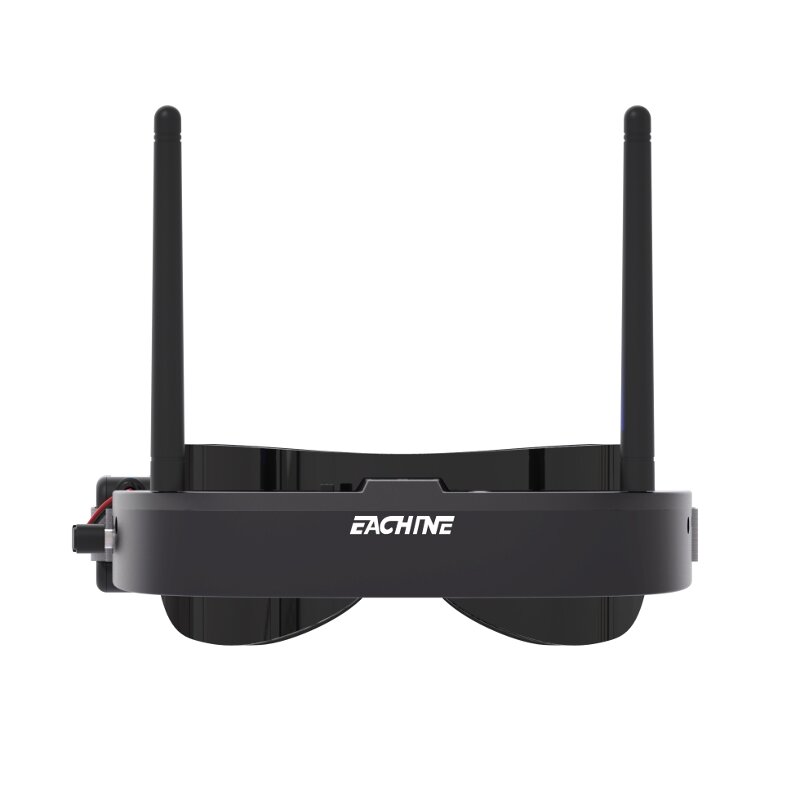

Eachine EV100 5.8G 72CH 720*540 FPV Goggles With Dual Antennas Fan 18650 Battery Case For RC Drone
34
Shipping to: United States |
Express delivery: 7-12 business days |
Standard delivery: 15-25 business days
Guaranteed Safe Checkout
Free Gift
Shipping Policy
Return PolicyFree Gift
Welcome to Roymall, your professional website for purchasing premium department store gifts. We highly value and appreciate your support, and we want to express our gratitude by adding an extra touch of excitement to your purchases. When you shop with us, you not only get to enjoy high-quality products that enhance your lifestyle, but you'll also receive an exclusive free gift with every order you place. Ready to explore our collection and find your perfect gifts? Browse our selection of premium department store items, place your order, and look forward to the excitement of your free gift arriving alongside your purchase.Shipping Policy
We will work hard to deliver items to you after receiving your orders and make sure they arrive safely. Delivery details will be provided in your confirmation email.In most cases, orders are processed within 2 days.Under special circumstances, it will be delayed as follows: When you place an order on Saturday, Sunday or public holidays, it will be delayed for 2 days..Normally, it needs 5-7 working days (Monday to Friday) without being affected by flight delay or other environmental factors..Because our shipping service is worldwide so the delivery times will depend on your location so it may need a few times and please wait patiently if you are in remote districts or countries.1. Return & Exchange Policy
We only accept items purchased from roymall.com. If you purchase from our local distributors or other retailers, you cannot return them on our side. Final sales items or free gifts are not acceptable for a return. To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging.After receiving return instructions from us, please package up your returned items and drop your package at the local post office or another courier.We will process your return or exchange item within 3-5 working days after we receive it. The refund will be processed and credited automatically to your original method of payment.No returns or exchanges can be accepted if the product was custom produced, including custom size, custom color, or custom printed.Need more help, please contact us. service@roymall.com or Whatsapp: +8619359849471
2.Refund Policy
You'll get a full refund or 100% store credit after we receive the returned package and check it. The refund will be processed and credited automatically to your original method of payment. Please note that shipping costs and any duties or fees are not refundable. The extra shipping costs are non-refundable once the package has been shipped. You are responsible for paying these fees and we’re unable to waive or refund them, even if the order is returned back to us.Once we received and confirmed your returned item, we will send you an email to notify you that we have received your returned item. We will also notify you of the approval or rejection of your refund.If you have any problems regarding the refund process, please contact us. service@roymall.com or Whatsapp: +8619359849471
Note:
The battery will be changed to 18650 battery case in order to facilitate transport, and it doesn"t have balance plug for DVR module, the DVR module should use another power supply, thank you for your understanding!
The receiver on EV100 Goggles doesn"t receive audio. But the goggles support audio input, that you can hear the audio if inputs the video to goggles.
Features
- - High-Resolution Display: Equipped with a 720×540 resolution screen, offering clear and detailed images.
- - Wide Field of View: Features a 28° diagonal FOV, providing a balanced visual experience.
- - Adjustable IPD and Focus: IPD adjustable between 58-68mm, and supports focal length adjustment for users with vision correction needs, under 400 degree myopia view directly via naked eye
- - Dual Antenna System: Single receiver with dual antennas, enhancing signal reception and stability.
- - Built-in Fan: Helps prevent fogging for clear vision during use.
- - Auto Search Function: Automatically searches and selects the strongest signal channel.
- - Racing Modes: Supports three racing modes (4/6/8 pilots) with 60-80MHz intervals between adjacent channels to reduce interference.
- - Debug Mode: Requires a corresponding VTX that supports pitmode and extra frequency 5300MHz.

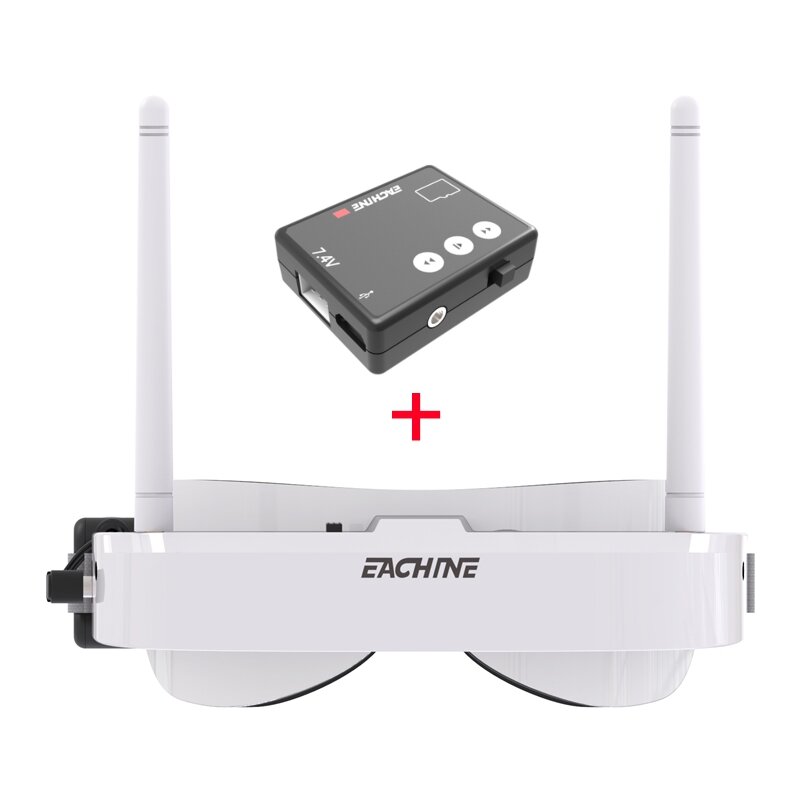

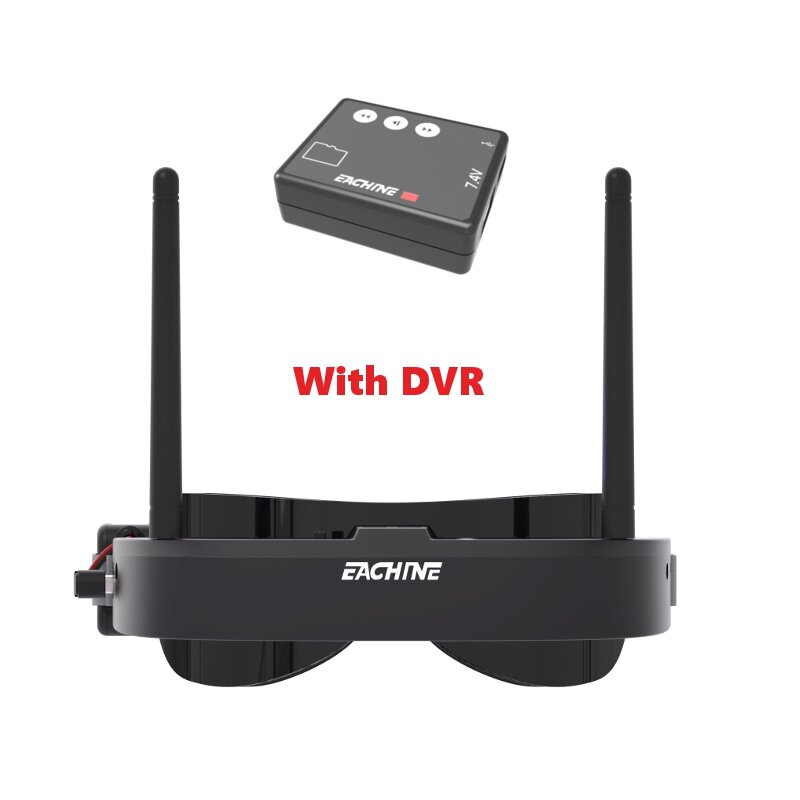

- - AV Input and Output: Supports external HDMIto AV module and external DVR module.( it doesn"t support Audio in FPV mode, for the build-in receiver can"t receive audio. But in --- AV-IN mode, the audio is available.)
- - Firmware Upgradable: Can be upgraded via USB connection.
- - Power Supply: Compatible with DC 7.4V input, suitable for 2S Li-ion batteries.
- - Included Accessories: Comes with a 7.4V 1000mAh battery, two RP-SMA 3dBi antennas, and a user manual.
- High-Resolution Display: Equipped with a 720×540 resolution screen, offering clear and detailed images.
- Wide Field of View: Features a 28° diagonal FOV, providing a balanced visual experience.
- Adjustable IPD and Focus: IPD adjustable between 58-68mm, and supports focal length adjustment for users with vision correction needs, under 400 degree myopia view directly via naked eye
- Dual Antenna System: Single receiver with dual antennas, enhancing signal reception and stability.
- Built-in Fan: Helps prevent fogging for clear vision during use.
- Auto Search Function: Automatically searches and selects the strongest signal channel.
- Racing Modes: Supports three racing modes (4/6/8 pilots) with 60-80MHz intervals between adjacent channels to reduce interference.
- Debug Mode: Requires a corresponding VTX that supports pitmode and extra frequency 5300MHz.
- AV Input and Output: Supports external HDMIto AV module and external DVR module.( it doesn"t support Audio in FPV mode, for the build-in receiver can"t receive audio. But in --- AV-IN mode, the audio is available.)
- Firmware Upgradable: Can be upgraded via USB connection.
- Power Supply: Compatible with DC 7.4V input, suitable for 2S Li-ion batteries.
- Included Accessories: Comes with a 7.4V 1000mAh battery, two RP-SMA 3dBi antennas, and a user manual.
Description
| Brand Name : | Eachine |
| Item Name : | EV100 |
| Size : | 165mm*76mm*30mm |
| Weight : | 221g(with battery 57g and antenna 13g) |
| Package Weight : | 400g |
Display
| Resolution : | 720*540 |
| FOV : | 28° diagonal |
| IPD : | 58-68mm |
| Ratio : | 4:3 |
| Focal length adjusting: | under 400 degree of myopia and hyporopia 150 degree |
Specification
| Frequency : | 5.8G 5333Mhz-5945Mhz |
| Sensitivity : | <=-93dB |
| Antenna Impedance : | 50u03a9 |
| Antenna Gain : | 3dBi |
| Antenna Connector : | RP-SMA |
| Video Formate : | NTSC/PAL |
| Support AV IN/OUT | YES |
| Support Focal Length/Brightness/Contrast Adjustment | YES |
| Suport Firmware Upgrading | YES |
| Power Input : | 7.4V |
| Low Voltag : | 6.8V |
| Battery : | 18650 battery case |
| Charging : | USB Cable(not included) |
| Working Temp. : | -10℃-+40℃ |
Recommanded Parts
FPV VTX : 5.8Ghz VTX Click Here
Tiny FPV Camera : 5.8Ghz Camera Click Here
Small Camera : Click Here
Spare Battery Box : Click Here
Package Included
1 x Eachine EV100 5.8G 72CH FPV Goggles1 x 18650 Battery case uff08Battery not includeduff092 x RP-SMA 3dBi Antenna1 x User Manual
